Motorsport Radiator with Shroud 14" SPAL brushless fans and harnesses

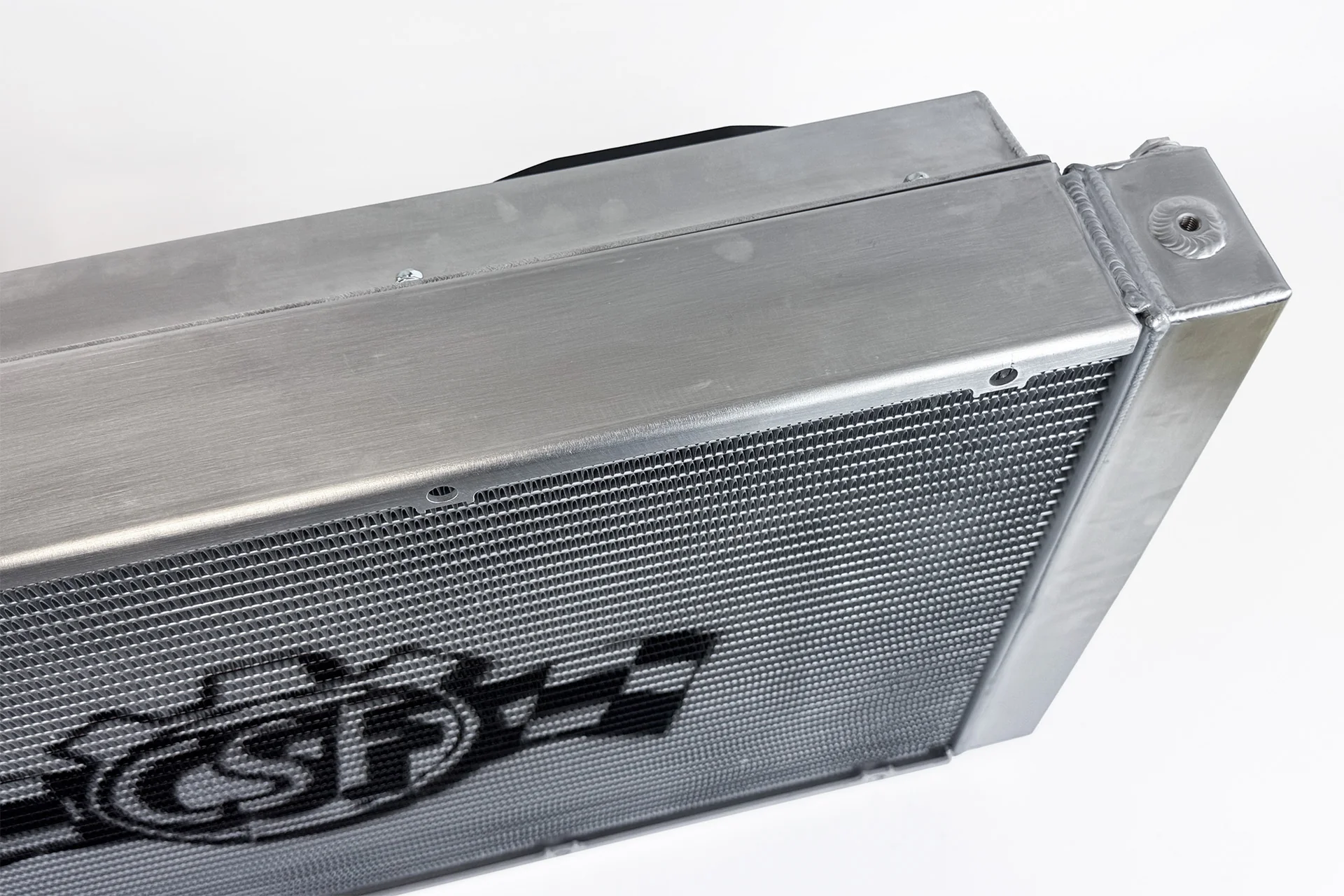

•           100% all aluminum construction

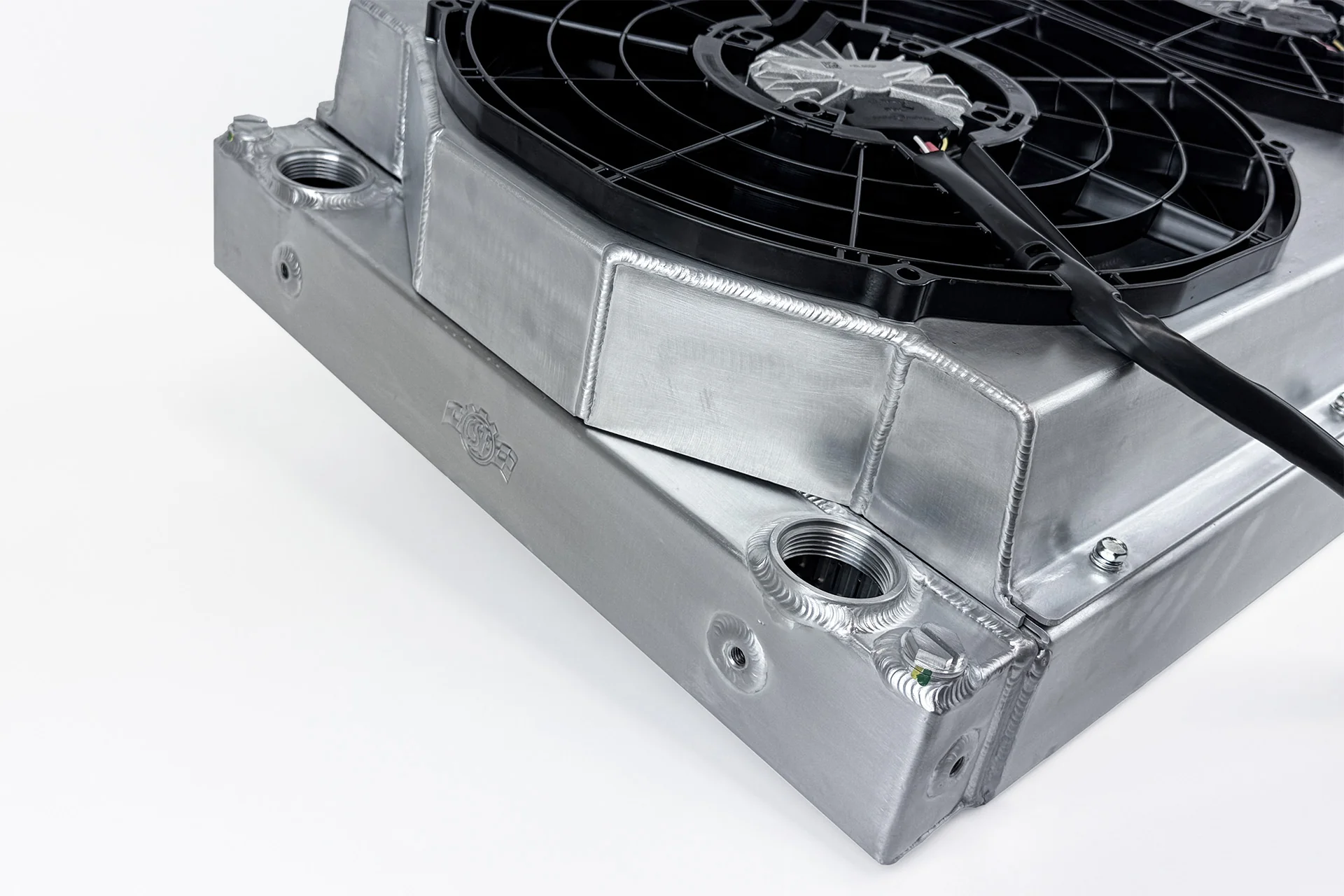

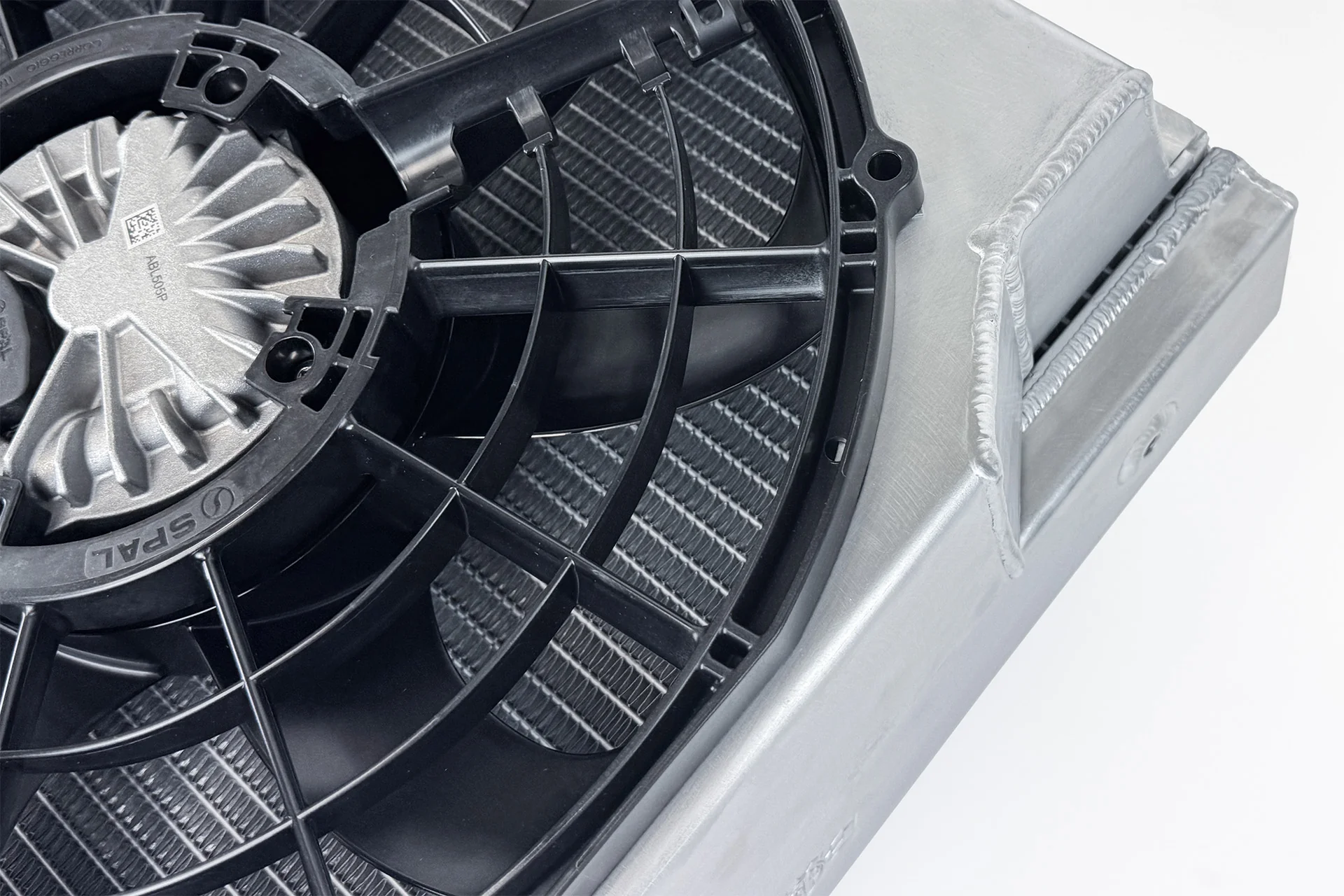

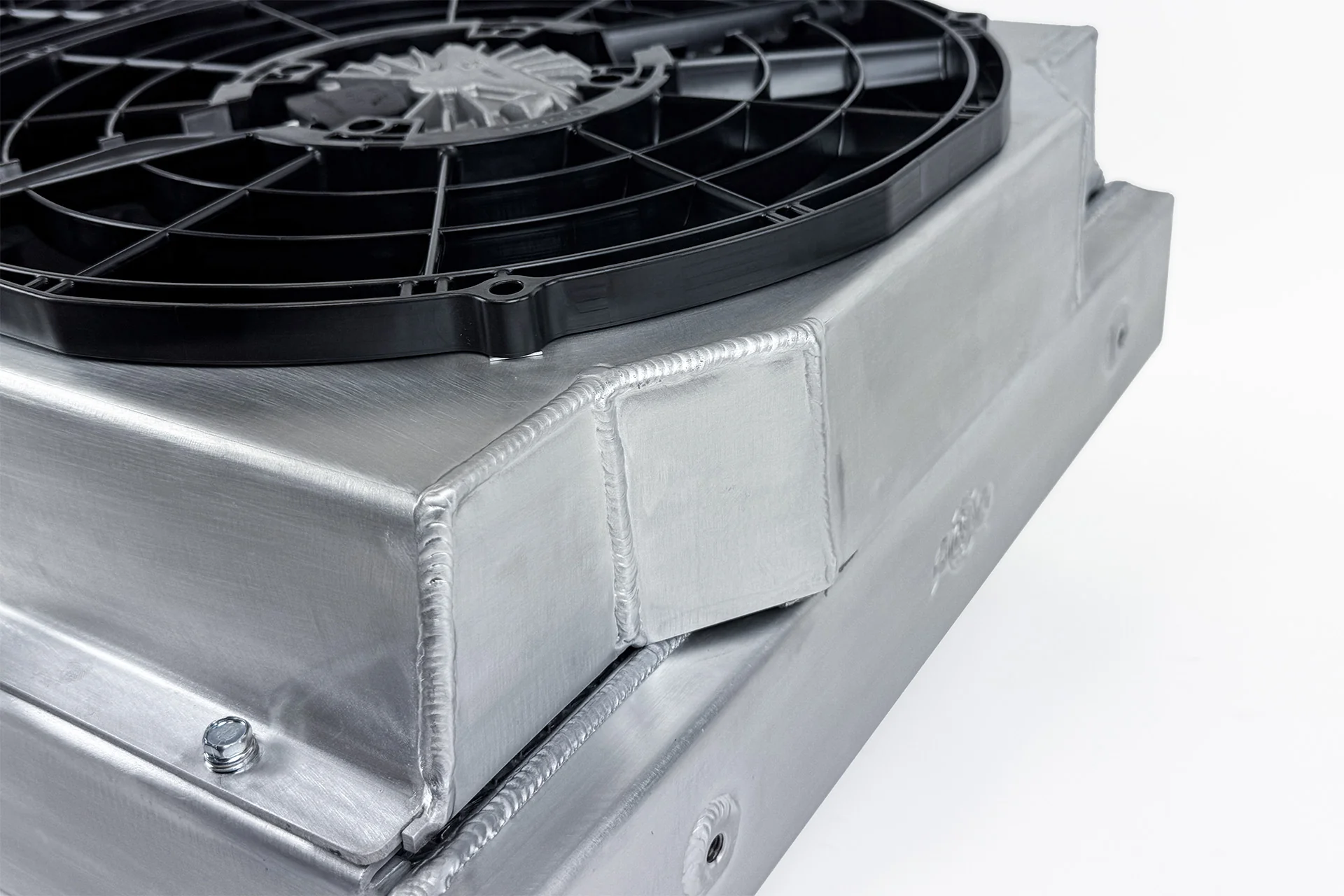

•           Removable Fan Shroud – Can Be Mounted on Either Side of the Core

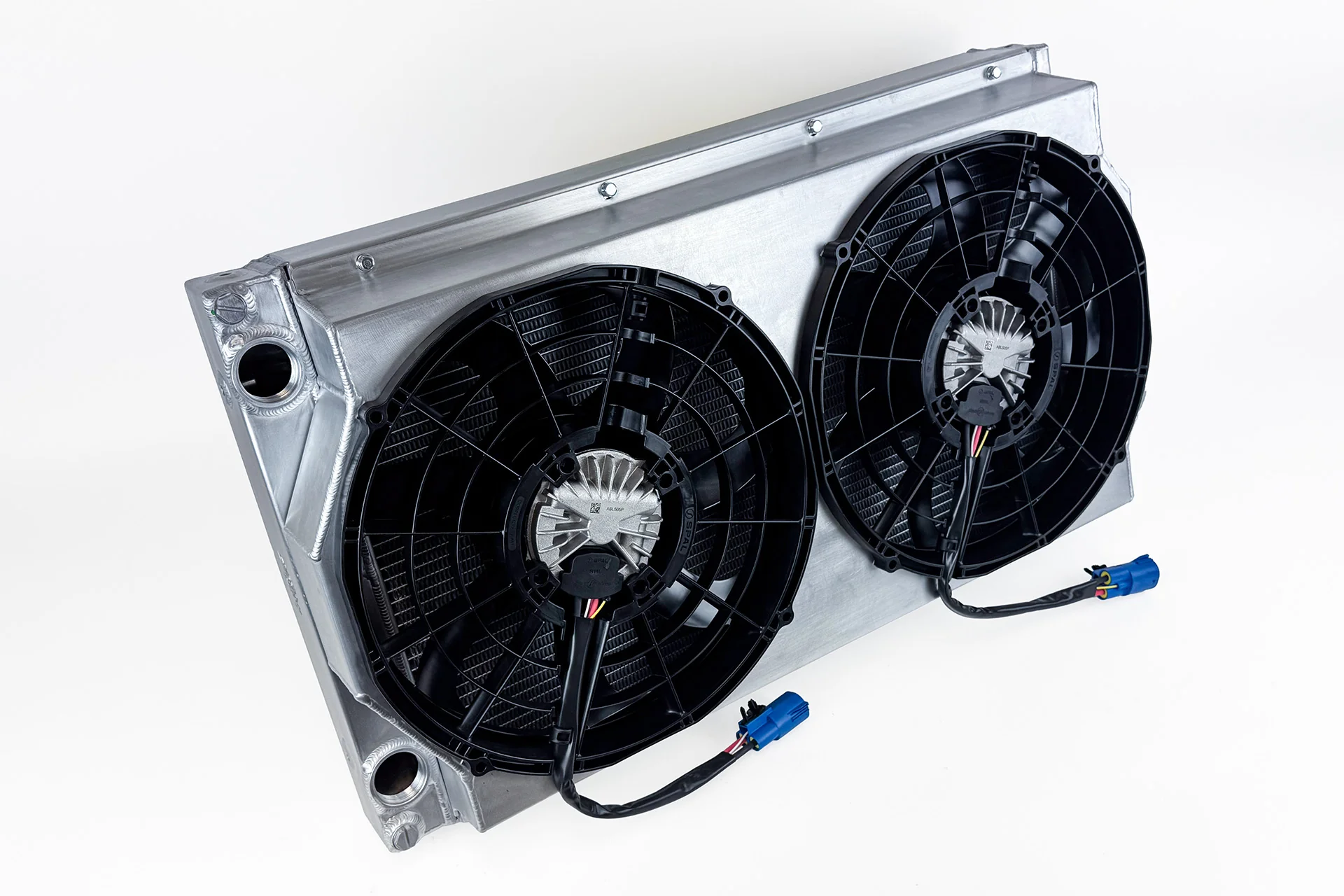

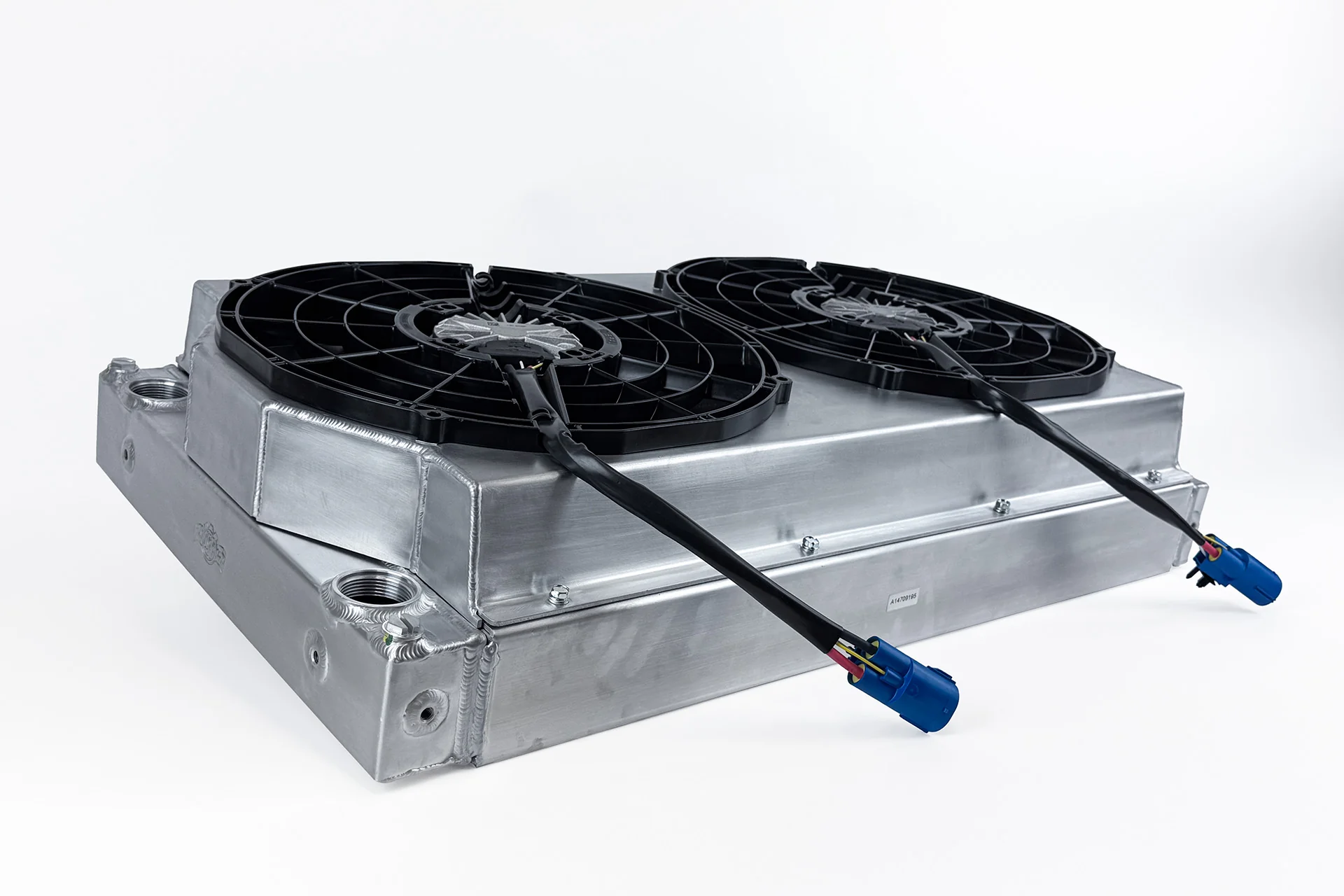

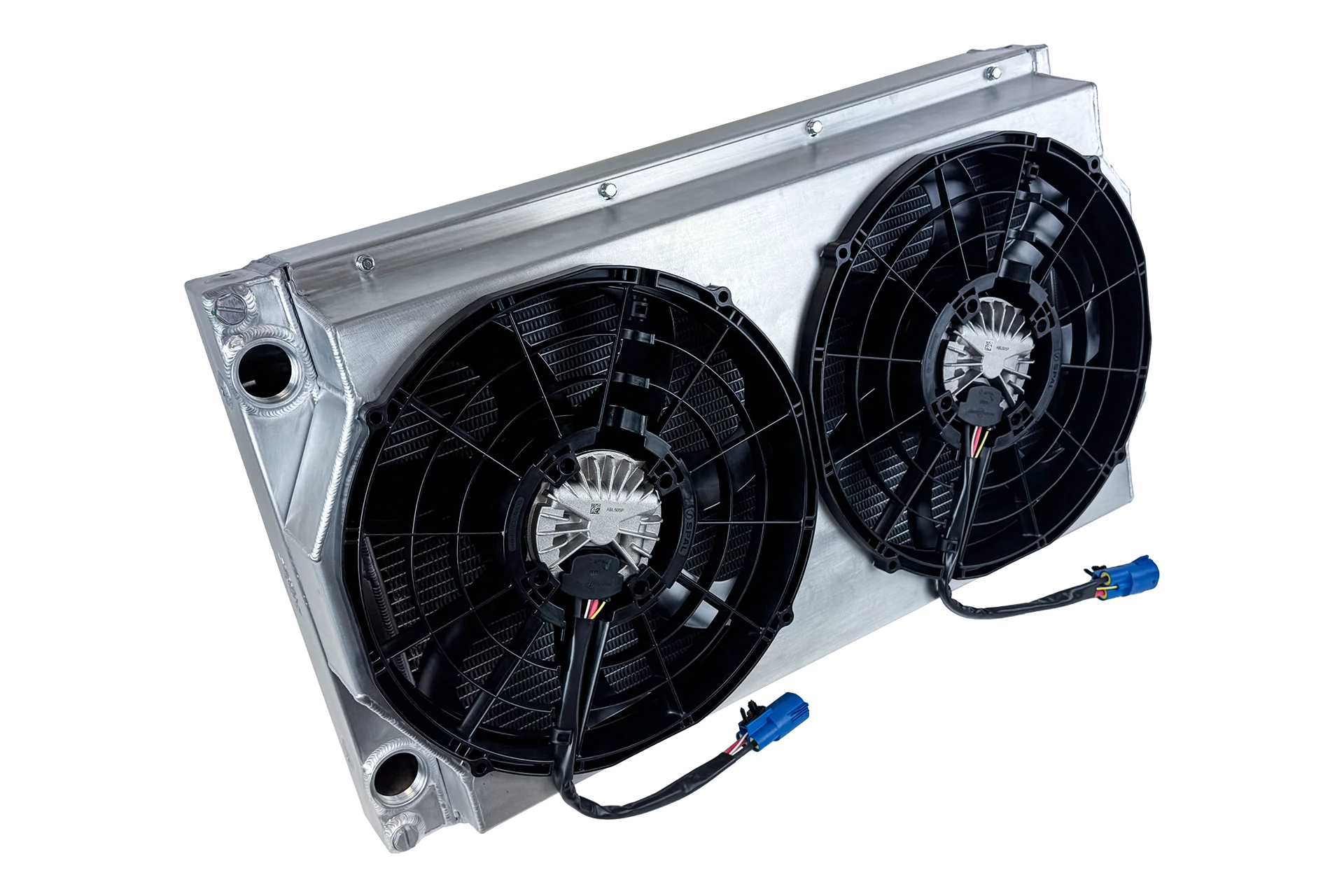

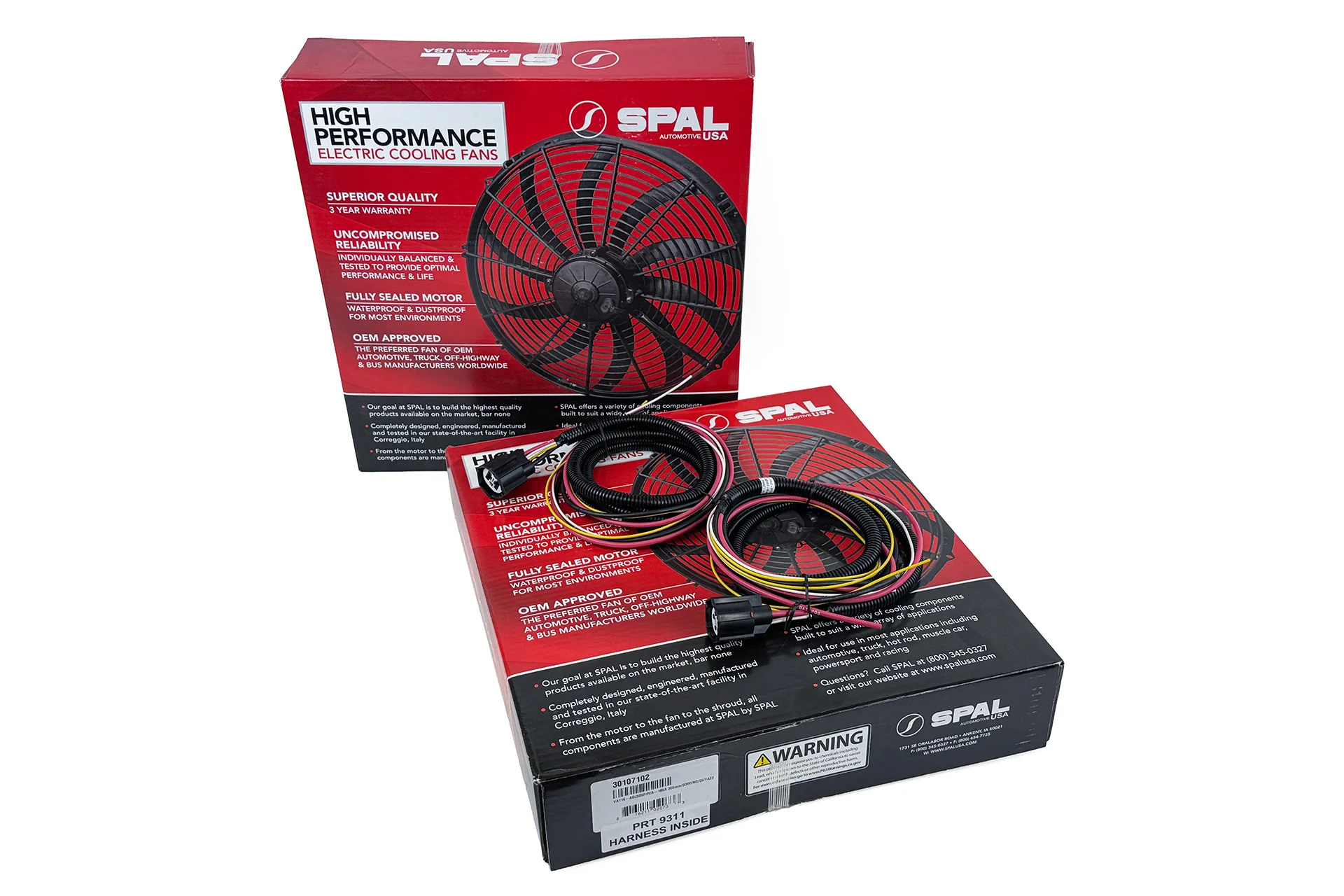

•           Dual 14″ 500W SPAL Brushless Fans – Total of 4790 CFM (SPAL ABL505P)

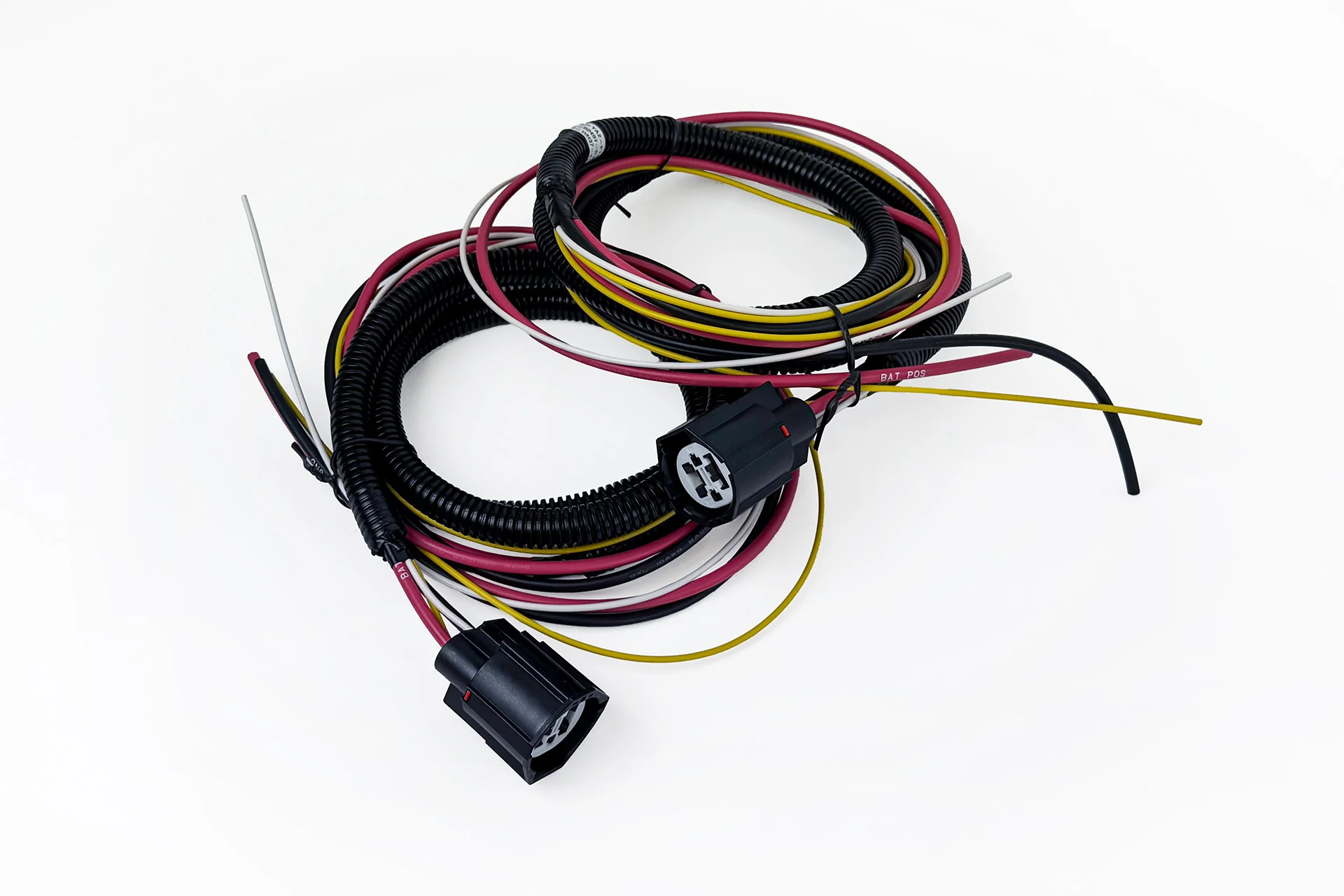

•           Includes Two Jumper Harness for the SPAL Fans

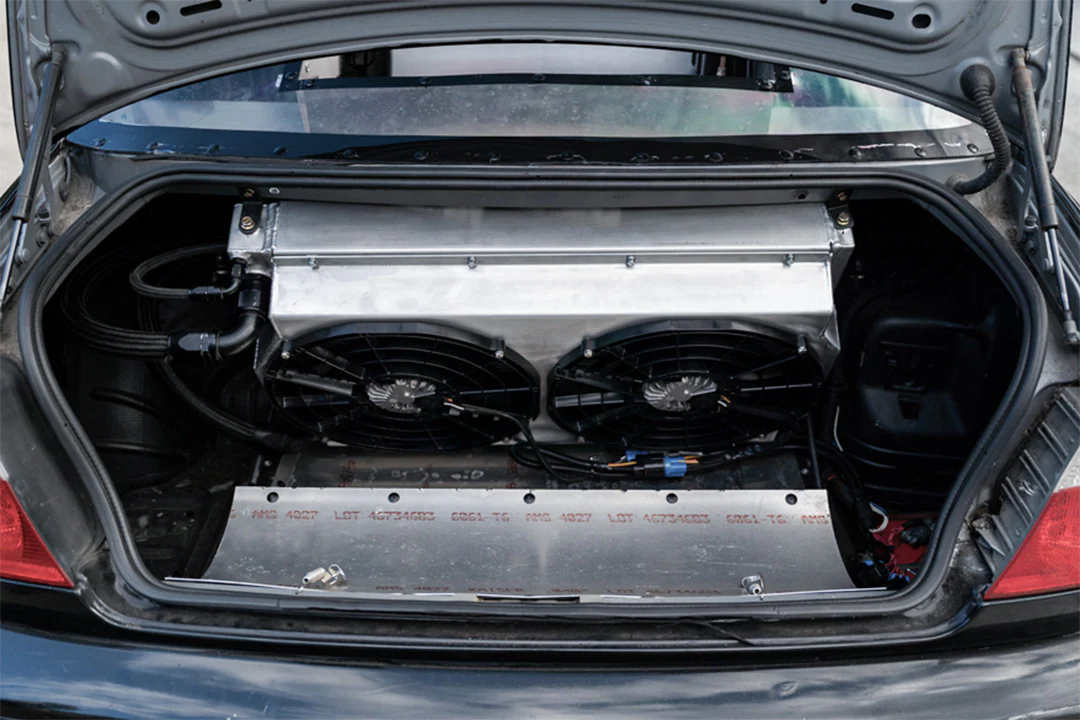

•           Universal Fit Allows for Mounting in Multiple Different Configurations

•           Dual Pass Core Configuration

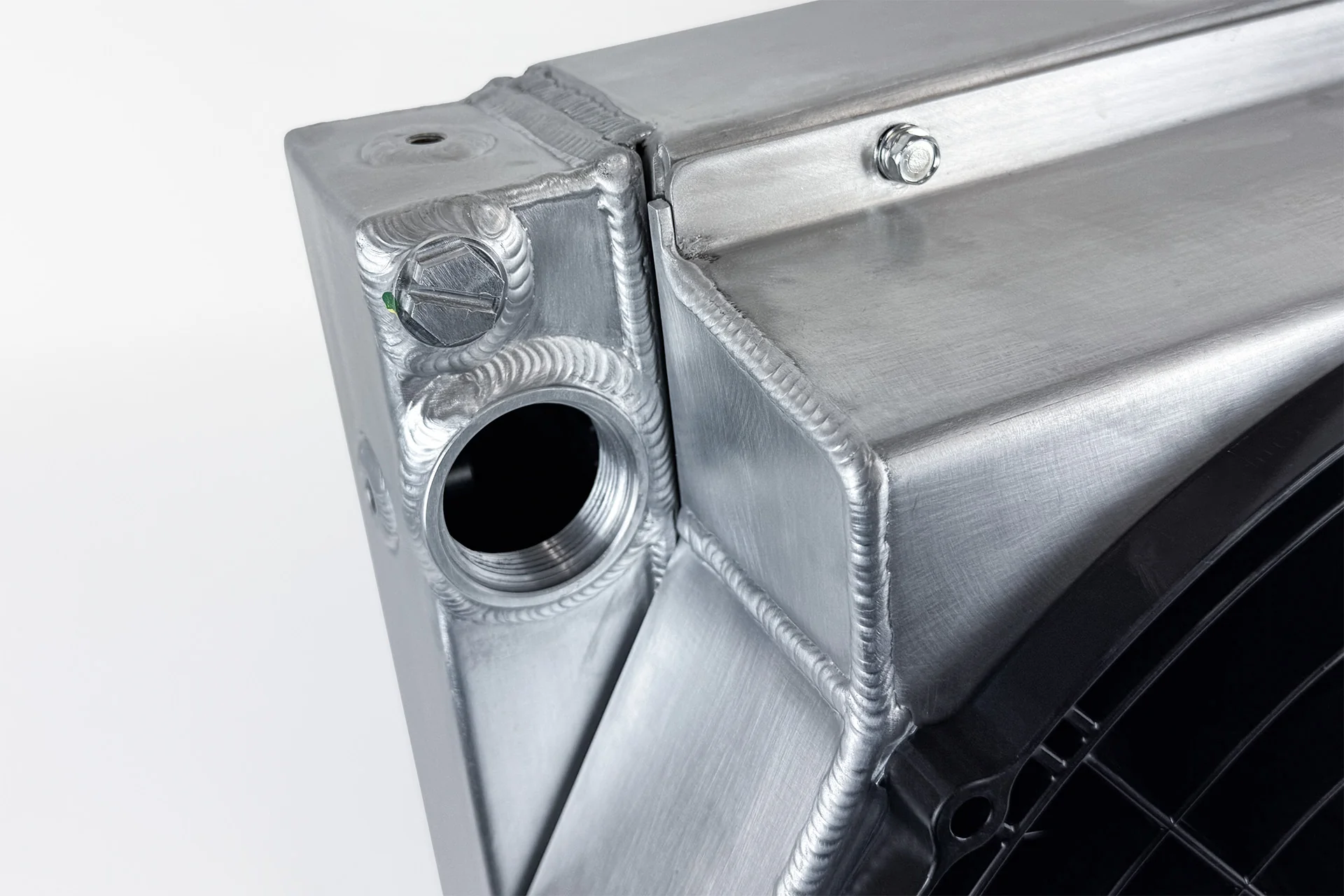

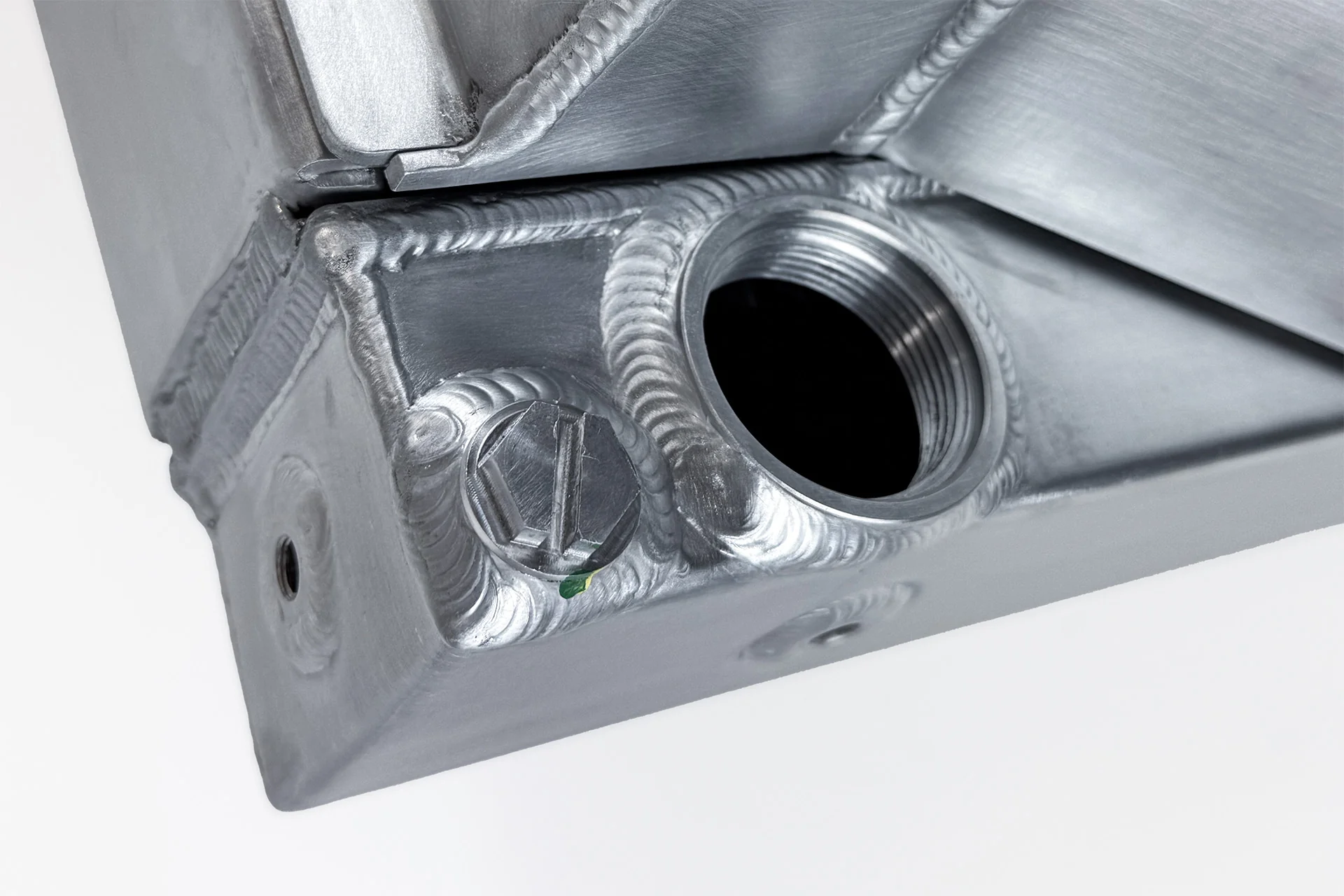

•           -20AN ORB Inlet and Outlet Mounting Bosses

•           M8x1.25 Mounting Bosses along end tanks for mounting feasibility

•           -6AN (9/16" – 18) ORB ports for sensor mounting / overflow mounting

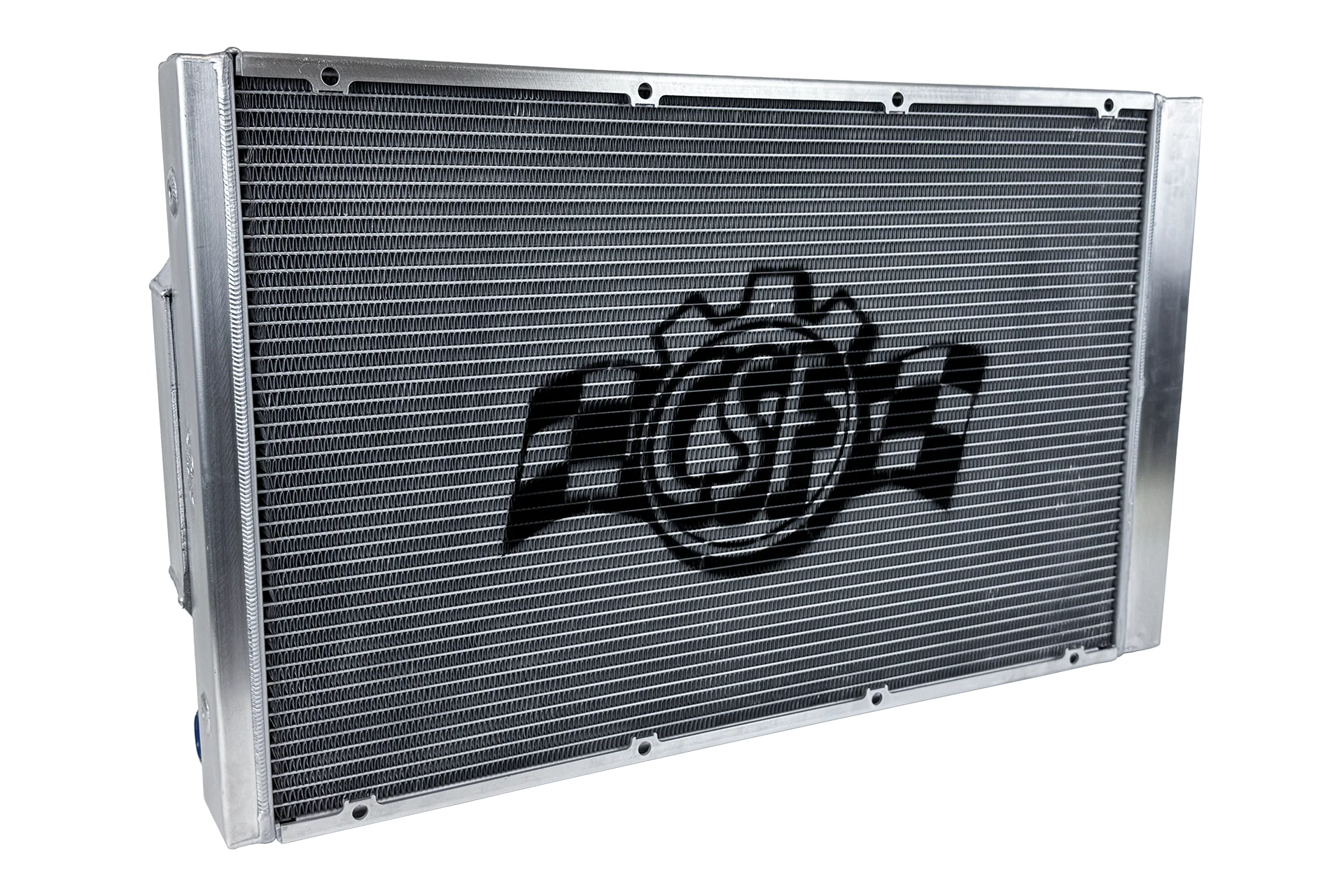

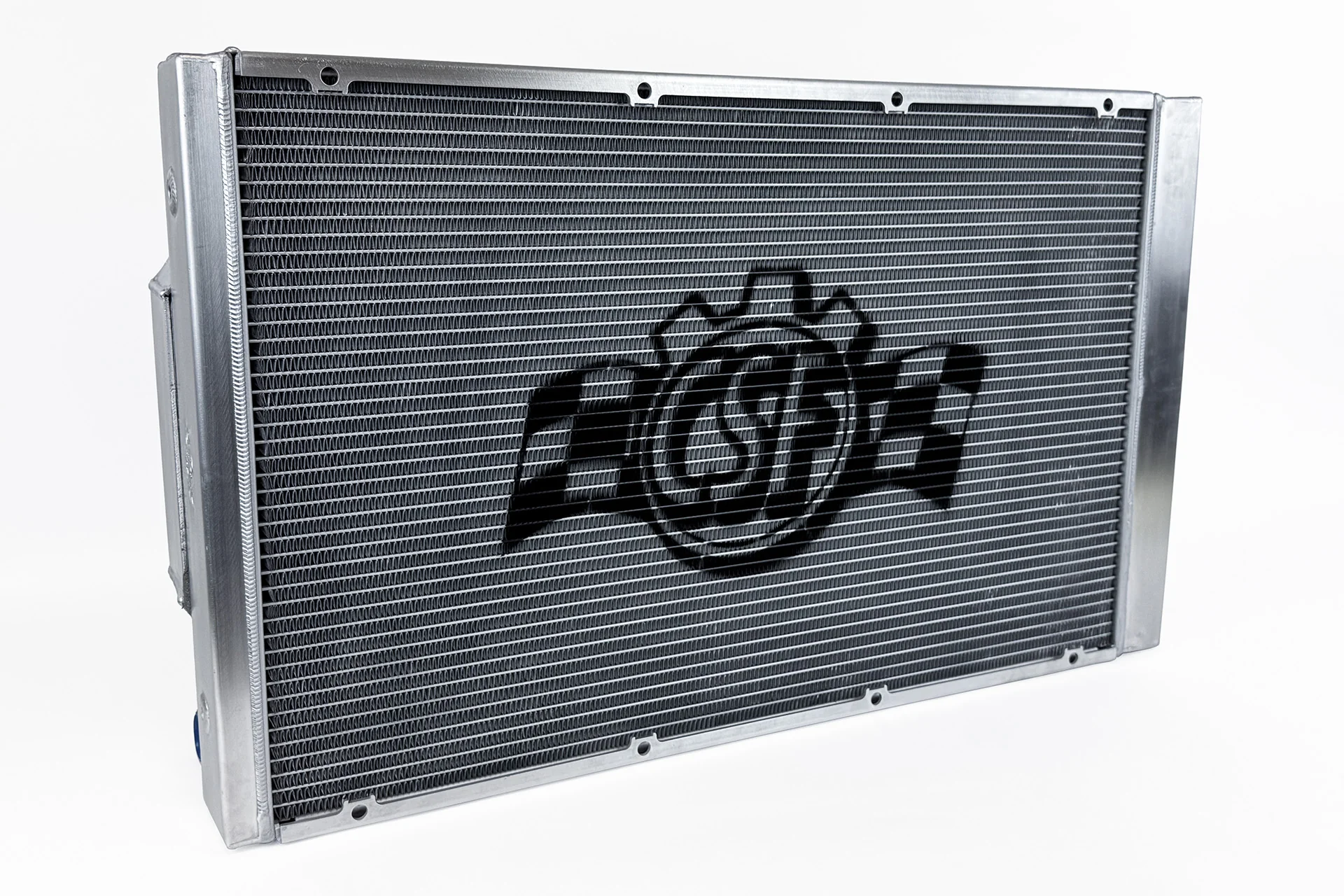

•           Dual Pass Core: 705 mm L x 448 mm H (27.75 x 17.5 inches)

•           Core Thickness: 68 mm

•           Tube Quantity: 44 2-row tubes

•           Fin Row Quantity: 45 rows

•           Fin Height: 8mm multi-louvered fin

•           Inlet Thread: -20AN (1 5/8" - 12)

•           Threaded female ORB boss

•           Outlet Thread: -20AN (1 5/8" - 12)

•           Threaded female ORB boss
