Modern vehicles commonly use the SAE J2044 standard for quick connect fittings in applications such as air breather lines, vacuum lines, PCV lines, coolant lines, and Electronic Fuel Injection (EFI) fuel lines.

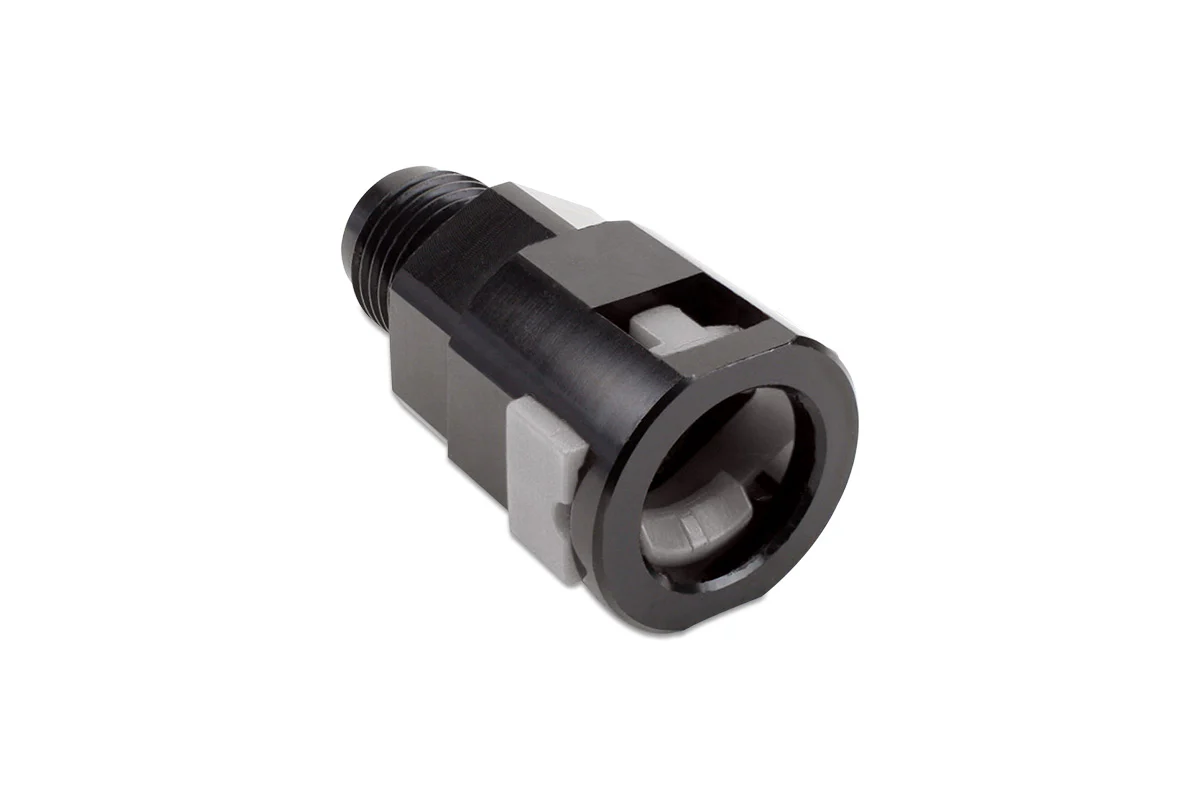

These fittings allow you to adapt the OEM style J2044 male barbs to AN hoses. This aluminum fitting locks in place on the male barb and can be released by pressing the plastic button.

To determine the size needed, measure the outer diameter of the male mating barb and refer to the diagram below.

Fuel systems commonly use the 3/8" size quick connect fittings. Most GM vehicles use M10 (9.89mm) quick release fittings for PCV breather lines. Ford and Dodge commonly use the 5/8" (15.82mm) quick release fittings for PCV breather lines. Measure your fittings to confirm the exact size needed.

Features and Benefits

OEM style J2044 standard female quick-connect adapter to industry standard male AN / JIC flared 37-degree sealing surface
Lightweight black anodized aluminum construction
Viton (FKM) o-rings for compatibility with all fuels, coolant, water, crankcase vapors, etc.
Lock release button made from Nylon plastic

Specifications
Part #	MQFD
Brand	RaceFlux
Color	Black
Primary Material	6061-T6 aluminum
Finish	Type II Anodized
Fitting Angle	Straight
Connection Type	AN Flare 37º JIC
Connection A Type	AN Flare
Connection A Gender	M
Connection B Type	J2044
Connection B Gender	N/A
Maximum Operating Temperature	302°F (150°C)
Minimum Operating Temperature	-40°F (-40°C)
Maximum Operating Pressure	300 psi (20.68 bar)
O-Ring / Gasket Material	FKM (Viton)
Swivel	None on installation only
Applications	Breather and vent lines Fuel (in-tank) Fuel (outside of tank) Gauge and sensor lines Hydraulics: low pressure (return lines) Vacuum lines Other oil water and air systems
Fluid Compatibility	Air Alcohol Coolants Engine oil Ethanol-based fuels (E85+) Ethanol/gasoline mixtures Gear oil Methanol Nitromethane Nitrous Oxide Power Steering Fluid Racing fuels Transmission fluid Vacuum Water
Standards & Certifications	AN Threads & 37° Flares per SAE AS4395 Anodizing per ISO 7599

Fuel - Lines & Fittings

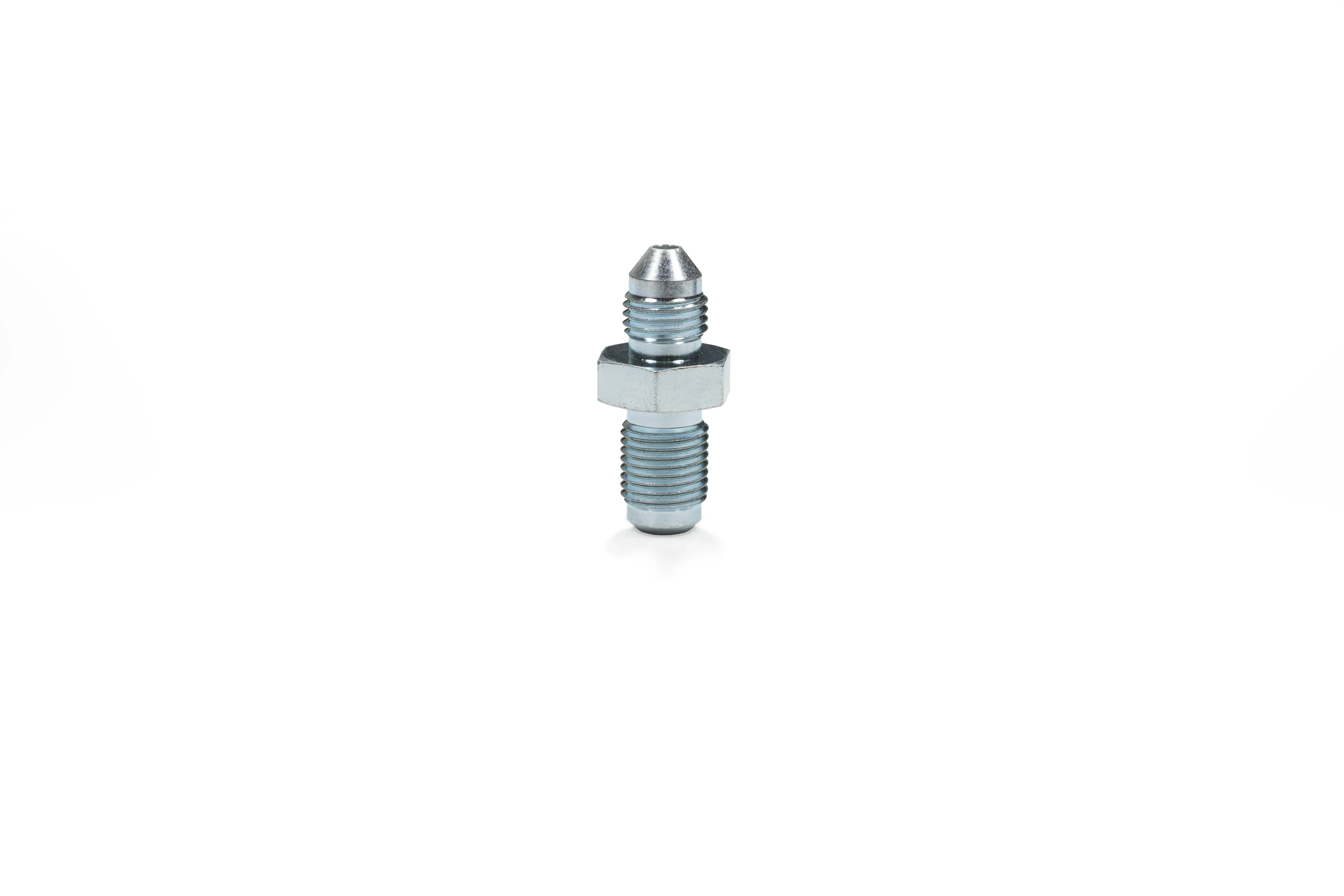

Color Fittings - -03 AN Fitting to M10x1.0 Straight

Improved Racing - RaceFlux Male Flare to J2044 Quick-Connect Female Plastic Button Adapter Fitting

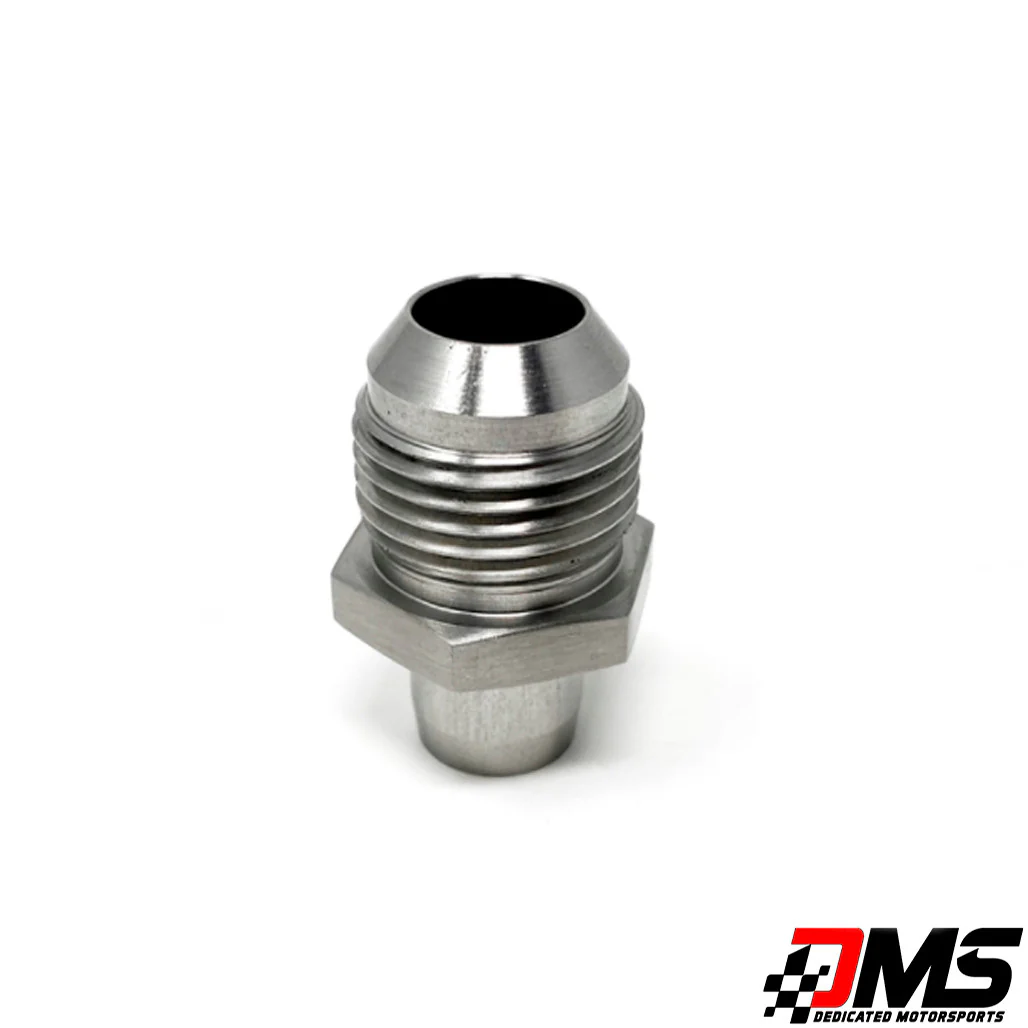

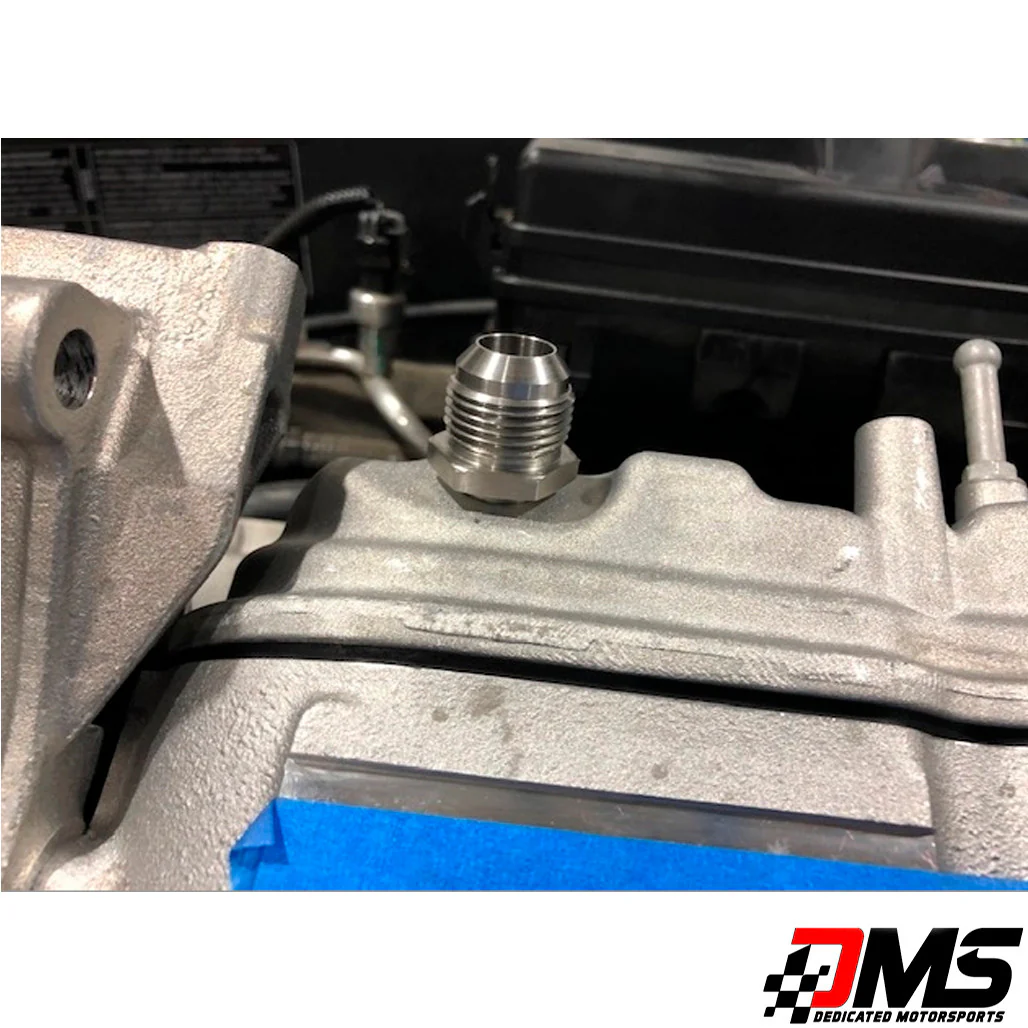

Dedicated Motorsports - LS Stainless drill in -10an Valve Cover Fitting

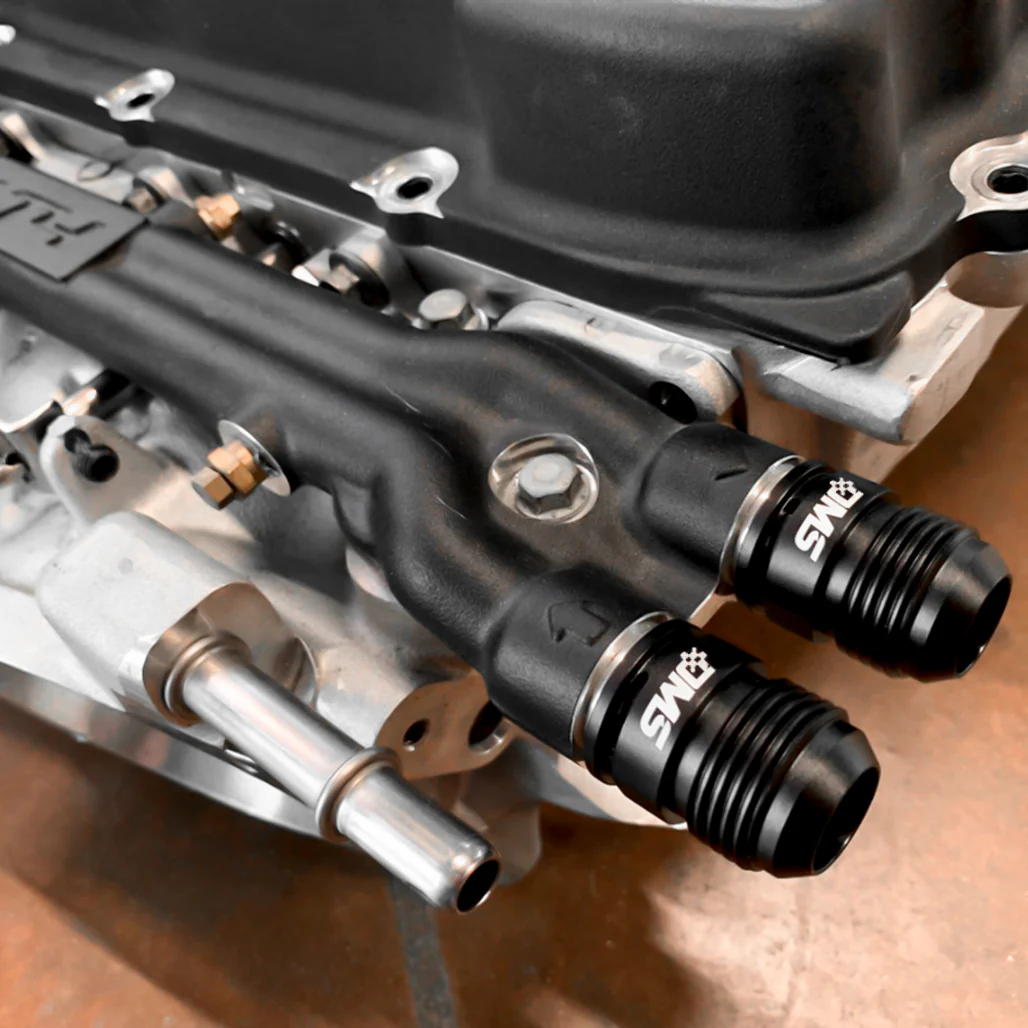

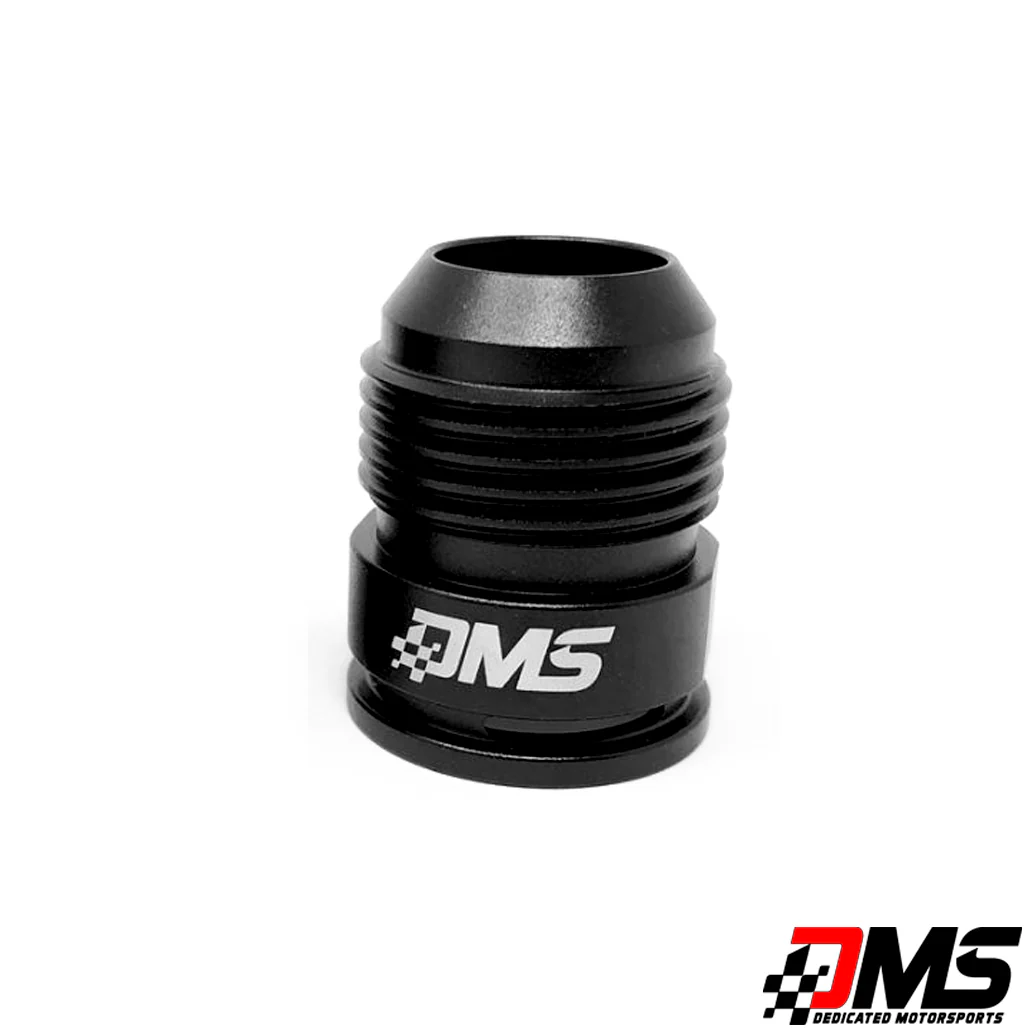

Dedicated Motorsports - LSA, LS9, LT4, LT5 12an Quick Connect Adapter
