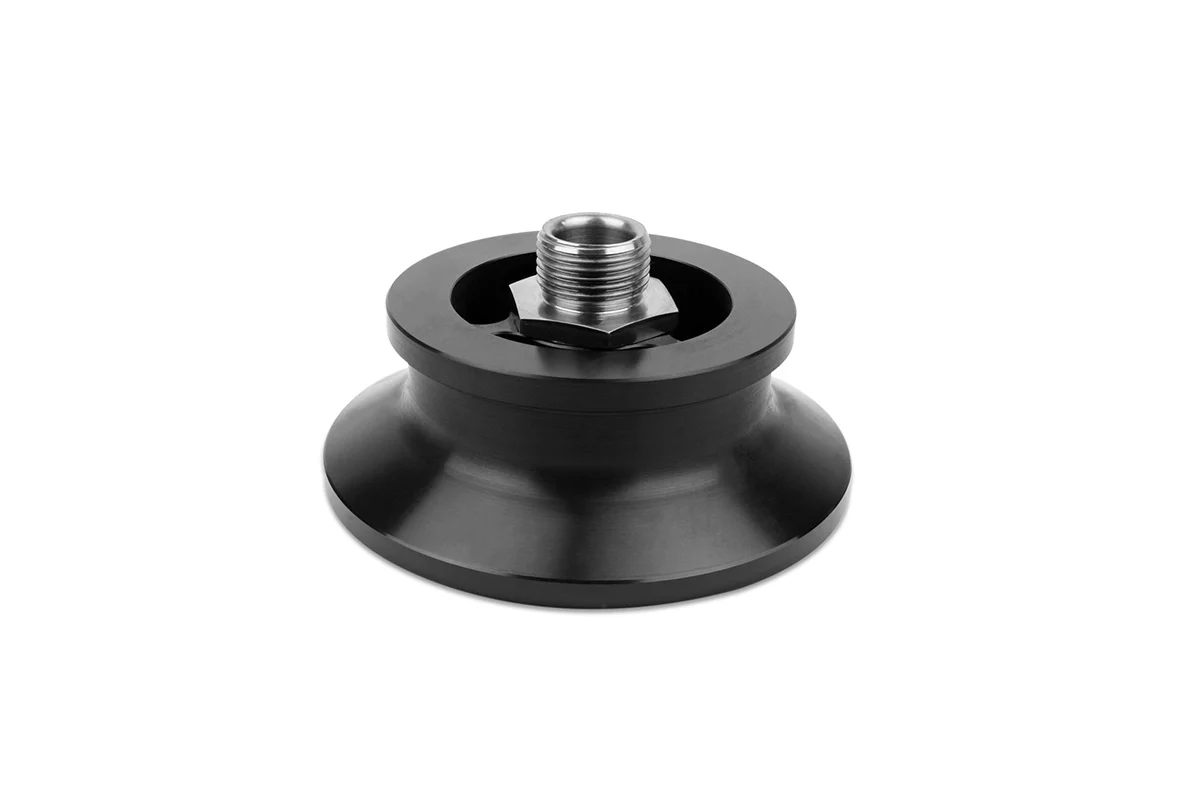

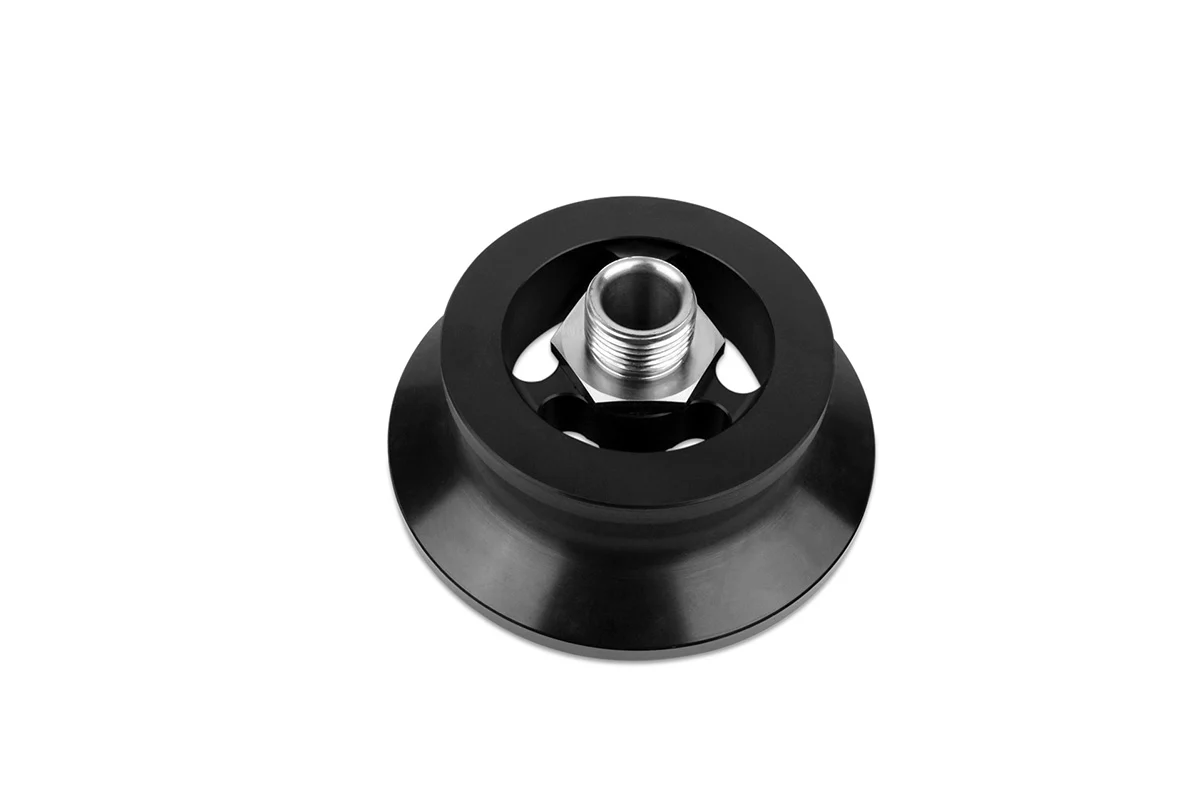

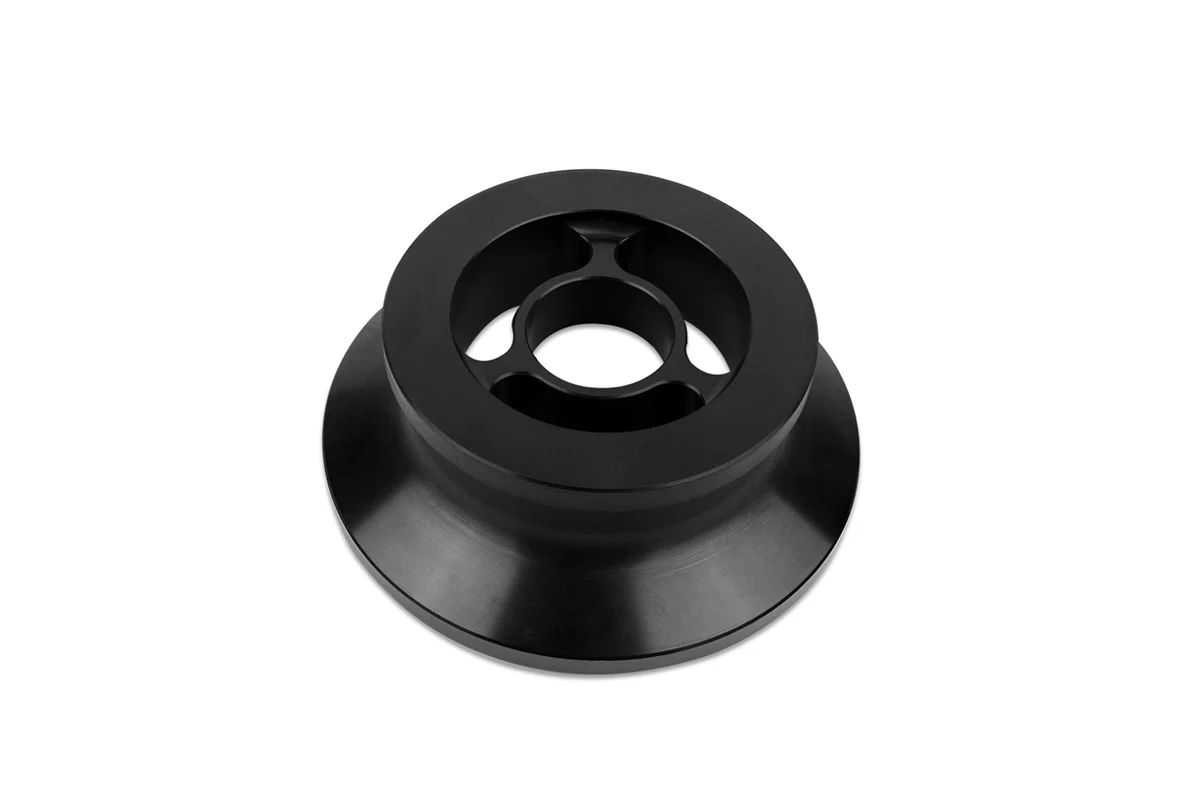

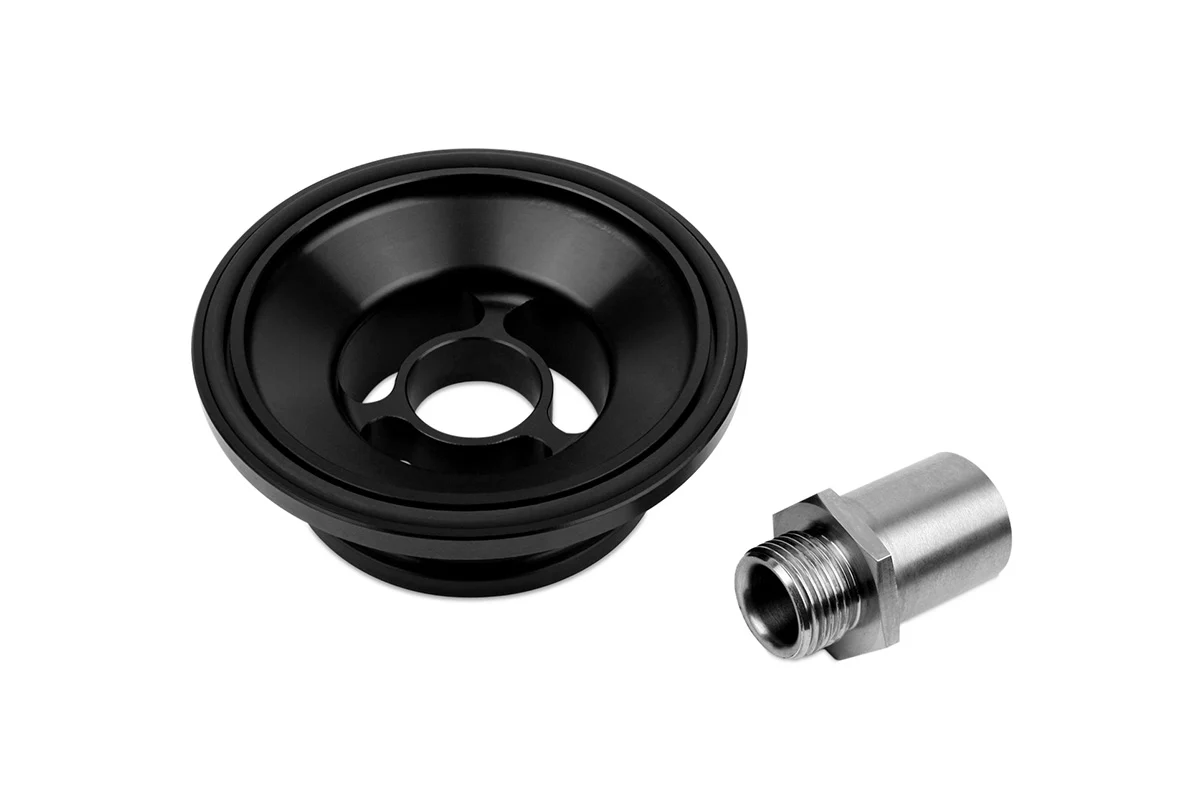

Improved Racing - Filter spacer, for Gen I-II SBC & GEN 1-6 BBC, with 13/16"-16 filter screw
This oil filter spacer allows you to use any Improved Racing sandwich plate or filter takeoff plate with the Gen 1-2 SBC and Mk. 1-6 BBC engines. These engines have larger diameter filter flanges that require this special adapter.
The filter bung extension screw is made from 410 stainless steel.
Features and Benefits
- 6061-T6 billet aluminum construction with black MIL-A-8625 Type II anodized finish
- Filter bung extension screw is machined from hardened 410 stainless steel for excellent durability
- Made in USA
- Lifetime Warranty

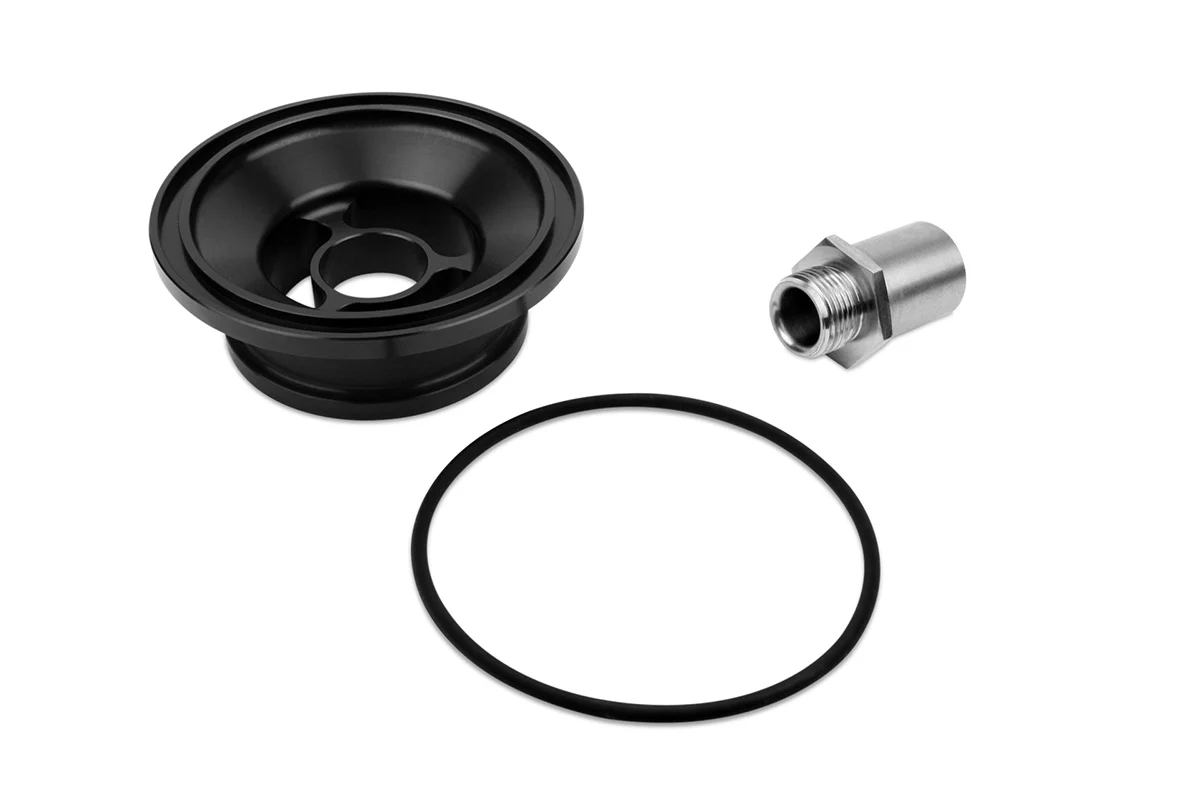

Includes
- 1x Oil filter adapter spacer
- 1x Sealing O-ring
- 1x 13/16"-16 stainless steel filter bung extension screw
Applications
- Gen 1-2 Chevrolet Small Block Engines
- Mark 1-6 Chevrolet Big Block Engines
- Compatible with all Improved Racing sandwich plates and filter takeoff adapters including part numbers:
- ENV-131
- ENV-132
- ENV-135
- ENV-139
- ENV-160
- ENV-169
- ENV-191
Dimensions
| Part # |
ENV-118
|
|---|---|
| Brand |
Improved Racing
|
| Primary Material |
6061-T6 aluminum
|
| Finish |
Type II Anodized
|
| Color |
Black
|
| Minimum Operating Temperature |
-40°F (-40°C)
|
| Maximum Operating Temperature |
302°F (150°C)
|
| Maximum Operating Pressure |
300 psi (20.68 bar)
|
| Max Recommended Flow Rate |
Up to 20 GPM (76 LPM)
|
| Fluid Compatibility |
Air
Alcohol Coolants Engine oil Ethanol-based fuels (E85+) Ethanol/gasoline mixtures Gear oil Methanol Nitromethane Nitrous Oxide Racing fuels Transmission fluid Vacuum Water |
| Filter O-Ring Material |
Nitrile (NBR)
|
