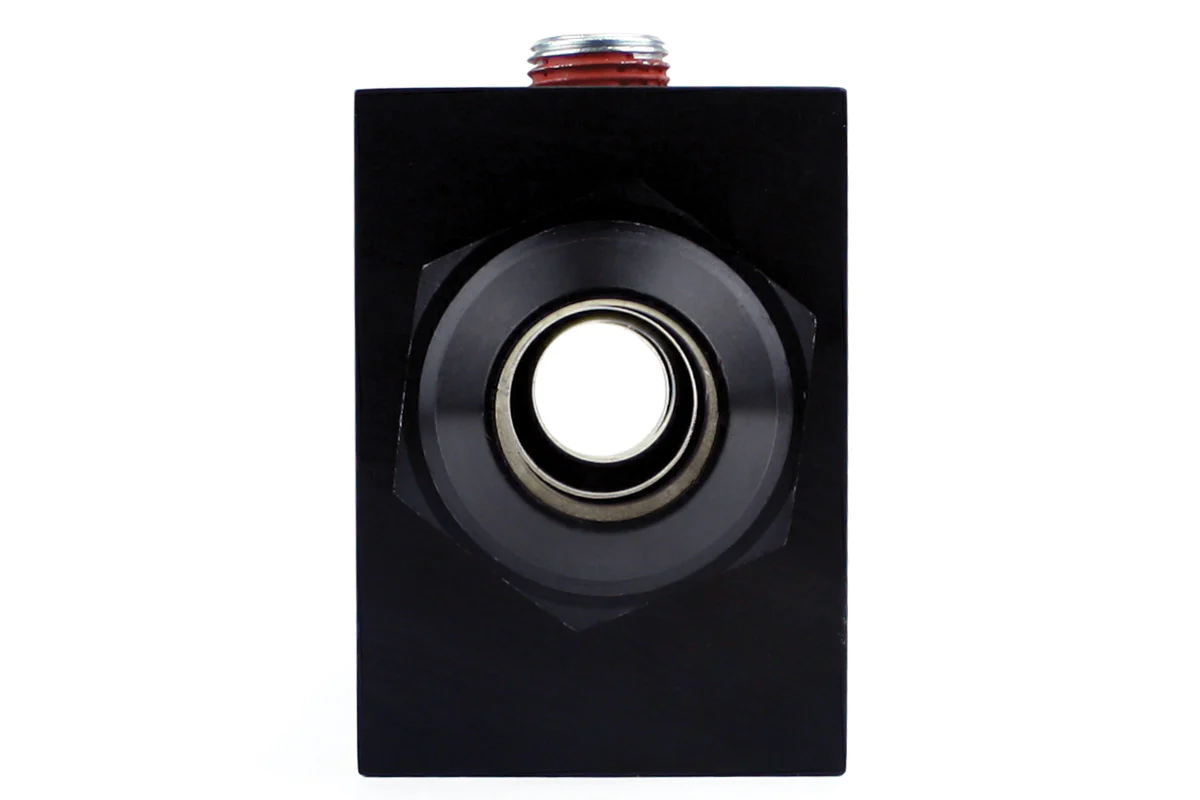

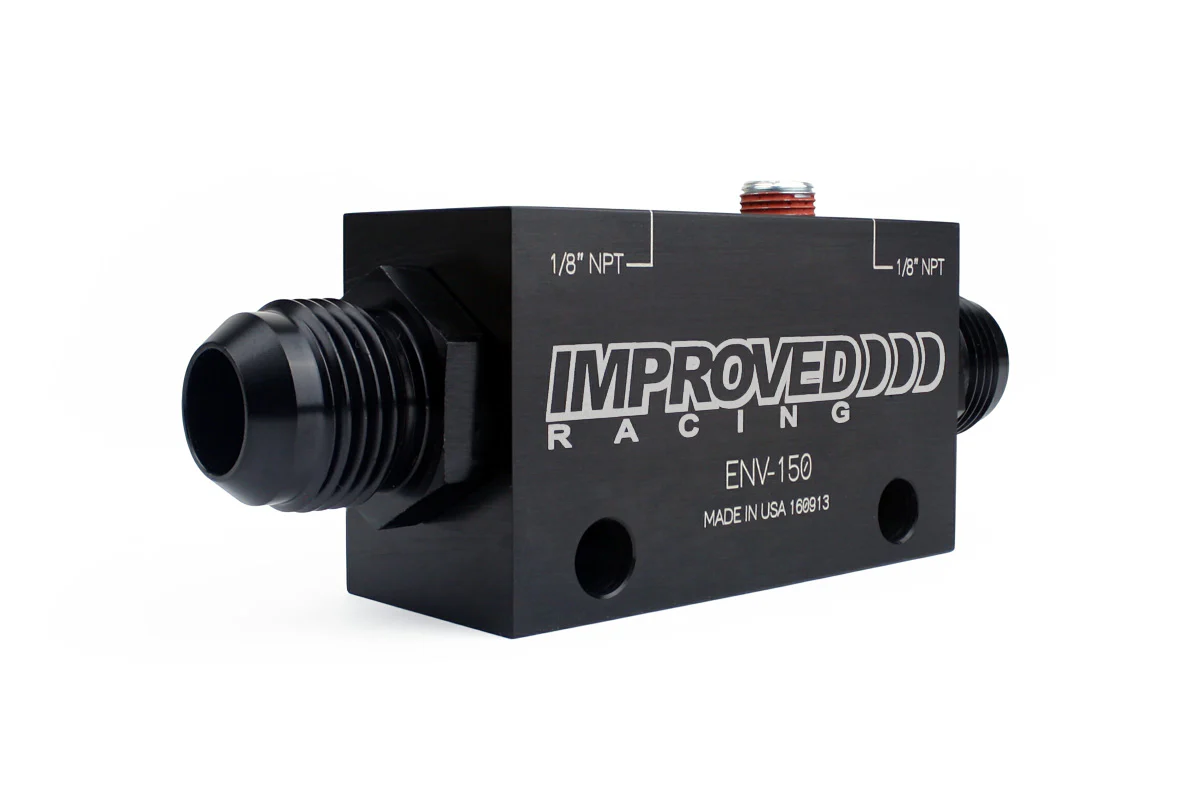

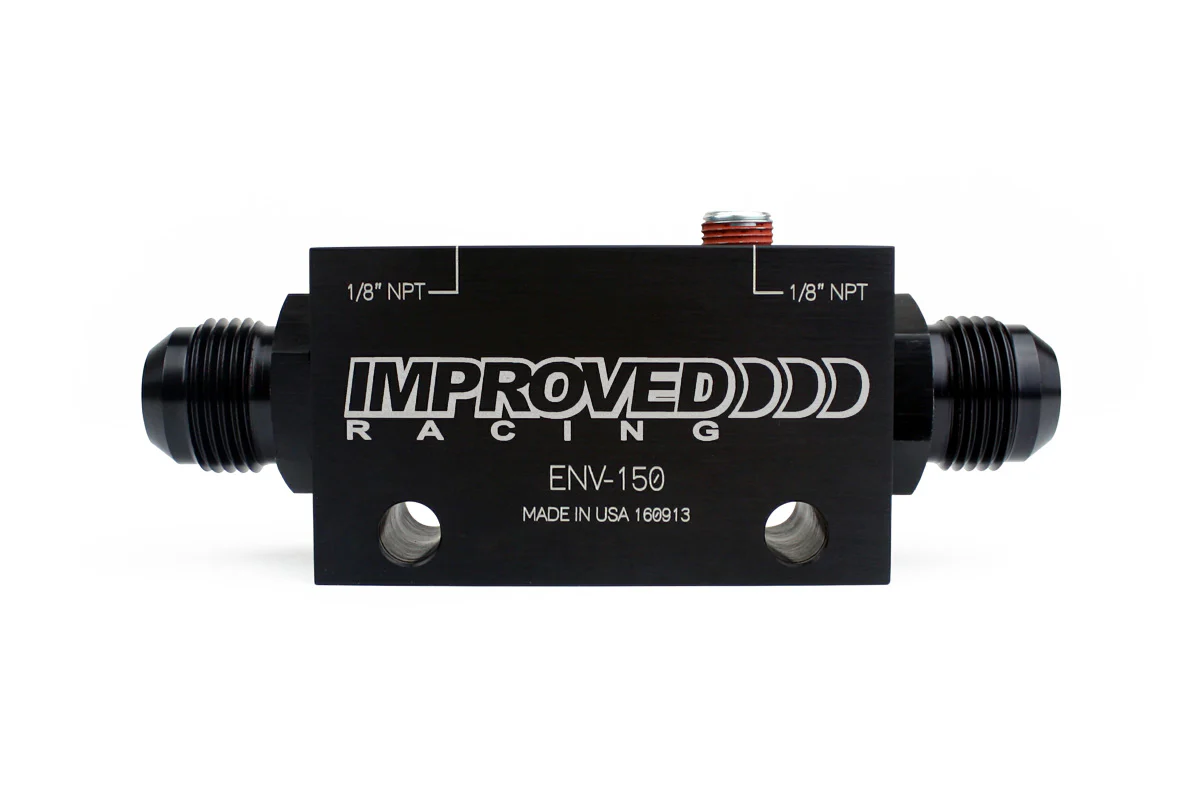

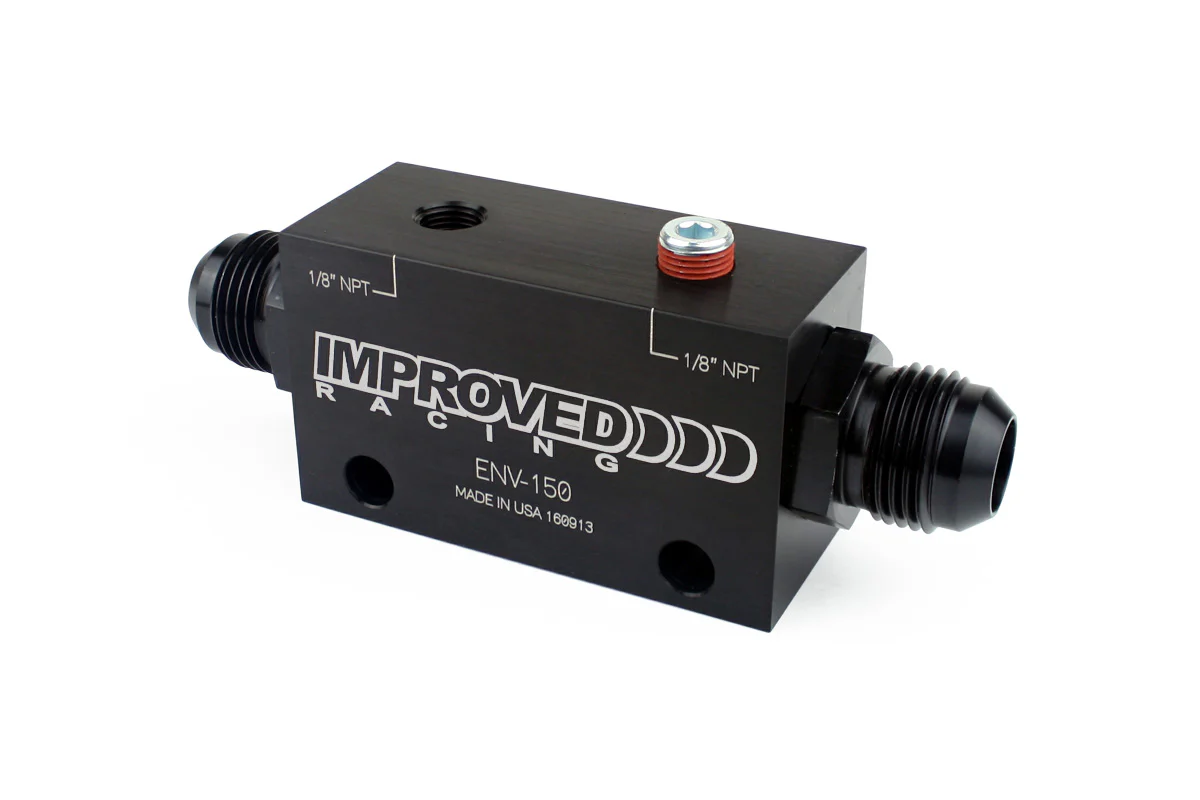

Improved Racing's inline oil sensor manifold allows for easy installation of two 1/8" NPT oil sensors on your oil cooler (or transmission cooler) line. The flow-through design of the manifold makes it ideal for monitoring both oil pressure and oil temperature and can also be used to supply oil to a turbocharger. Two units can be used together - one before the cooler and one after - to monitor an oil cooler's efficiency and pressure drop.

The manifold features -10AN O-ring boss threads and a large diameter passage that allows for high volume flow and minimal pressure drop. Fittings are available to accommodate -6AN, -8AN, -10AN and -12AN lines, or 3/8" and 1/2" hose.

These universal sensor manifold blocks can also be used in laboratory and industrial applications. We use them in our own lab for testing oil coolers.

Features and Benefits

• Universal sensor manifold accommodates two 1/8" NPT oil sensors or oil supply lines
• High flow, low pressure drop design
• -10AN female O-ring boss input and output ports
• Mounting holes for bolts up to 8 mm (5/16") in diameter
• 6061-T6 billet aluminum construction with black MIL-A-8625 Type II anodized finish
• Lifetime Warranty
• Made in the USA

Available with 3/8" or 1/2'' hose barb fittings or AN fittings in -6AN, -8AN, -10AN, or -12AN

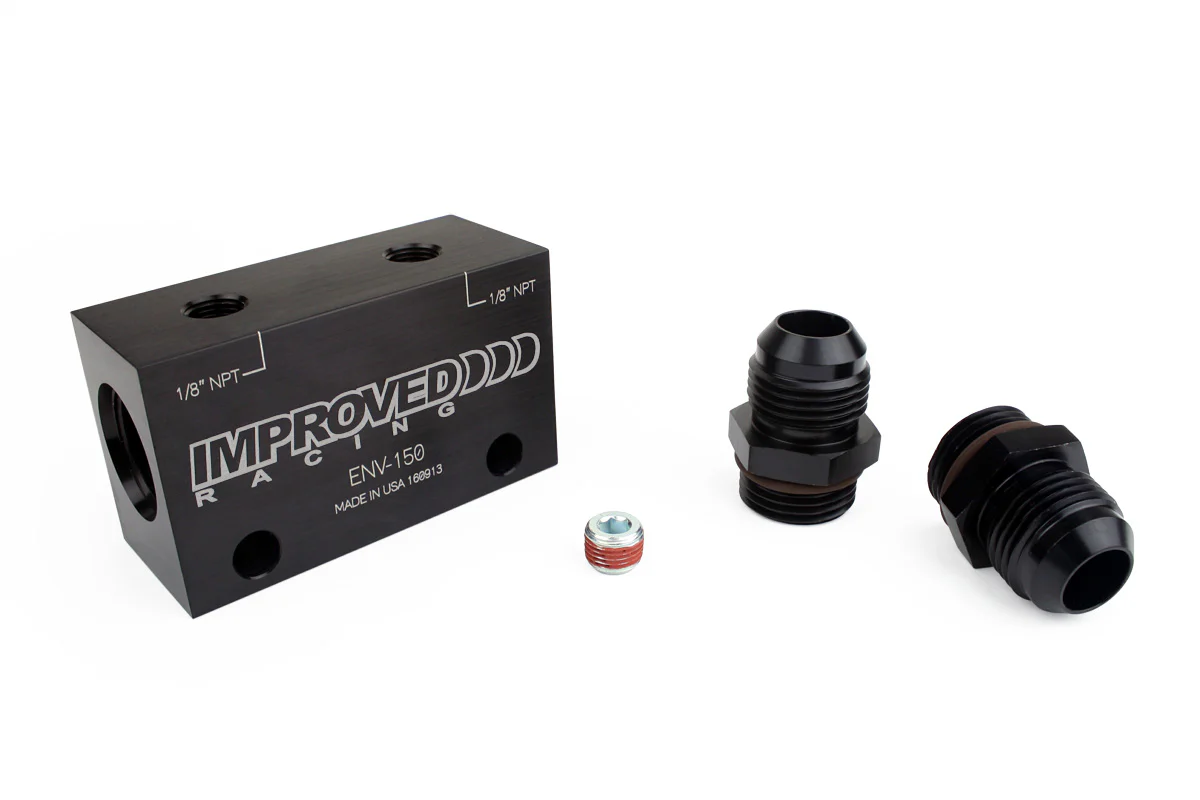

Includes

• 1x Universal sensor manifold
• 2x Black anodized 3/8" or 1/2'' hose barb or -6AN, -8AN, -10AN, or -12AN adapter fittings with Viton O-rings (OPTIONAL)
• 1x 1/8" NPT plug with thread sealant

Applications

• Universal fitment on oil cooler lines. Appropriate for automotive, marine, laboratory and industrial use.
