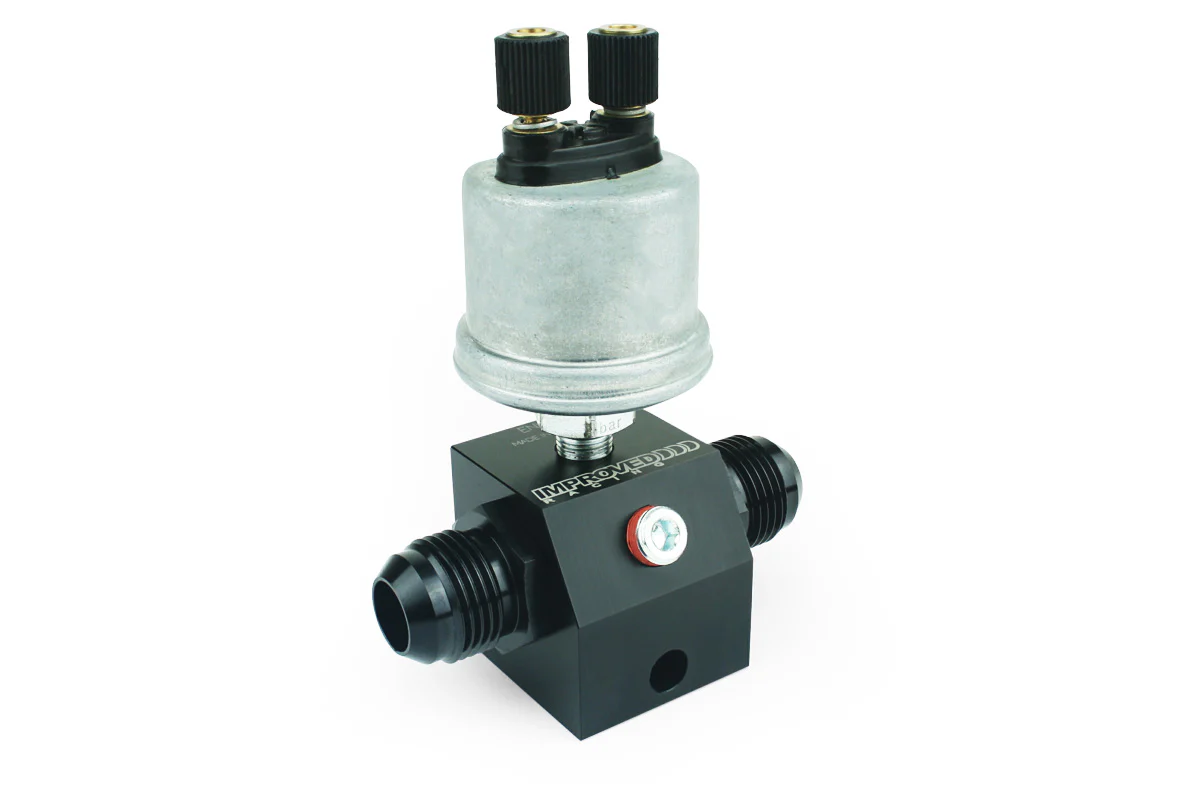

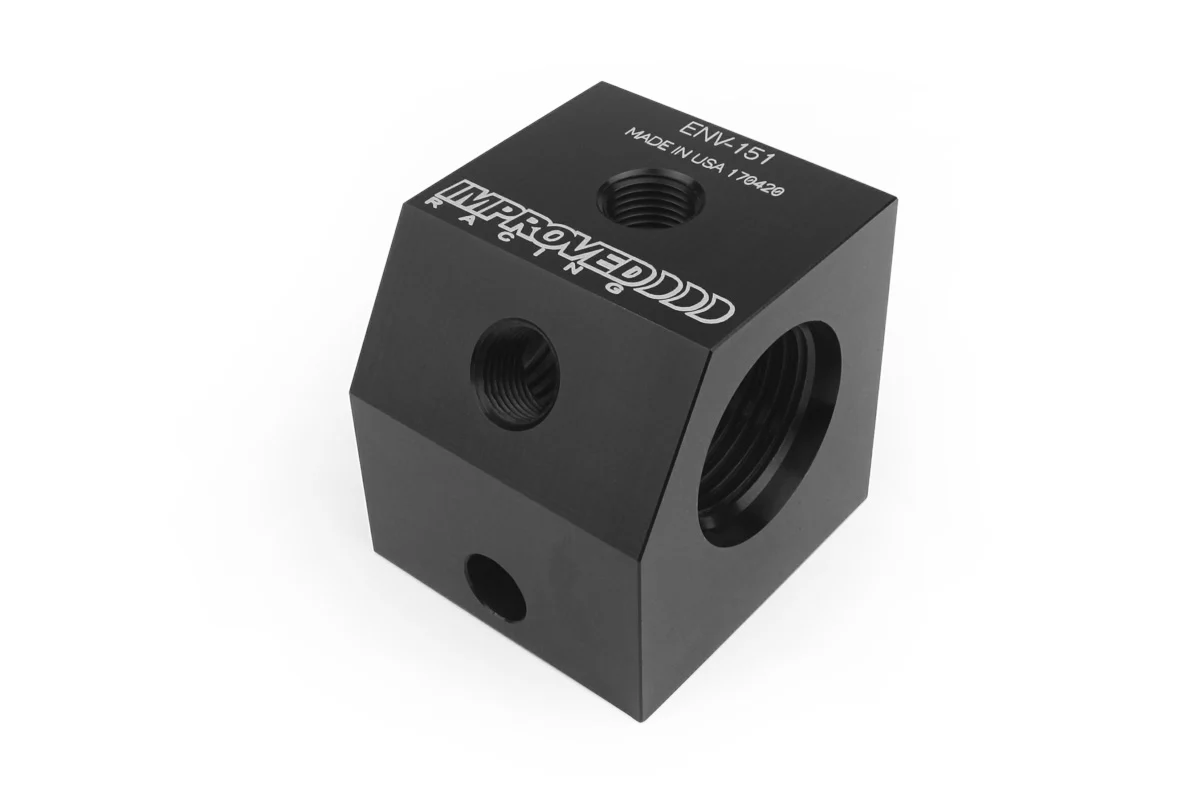

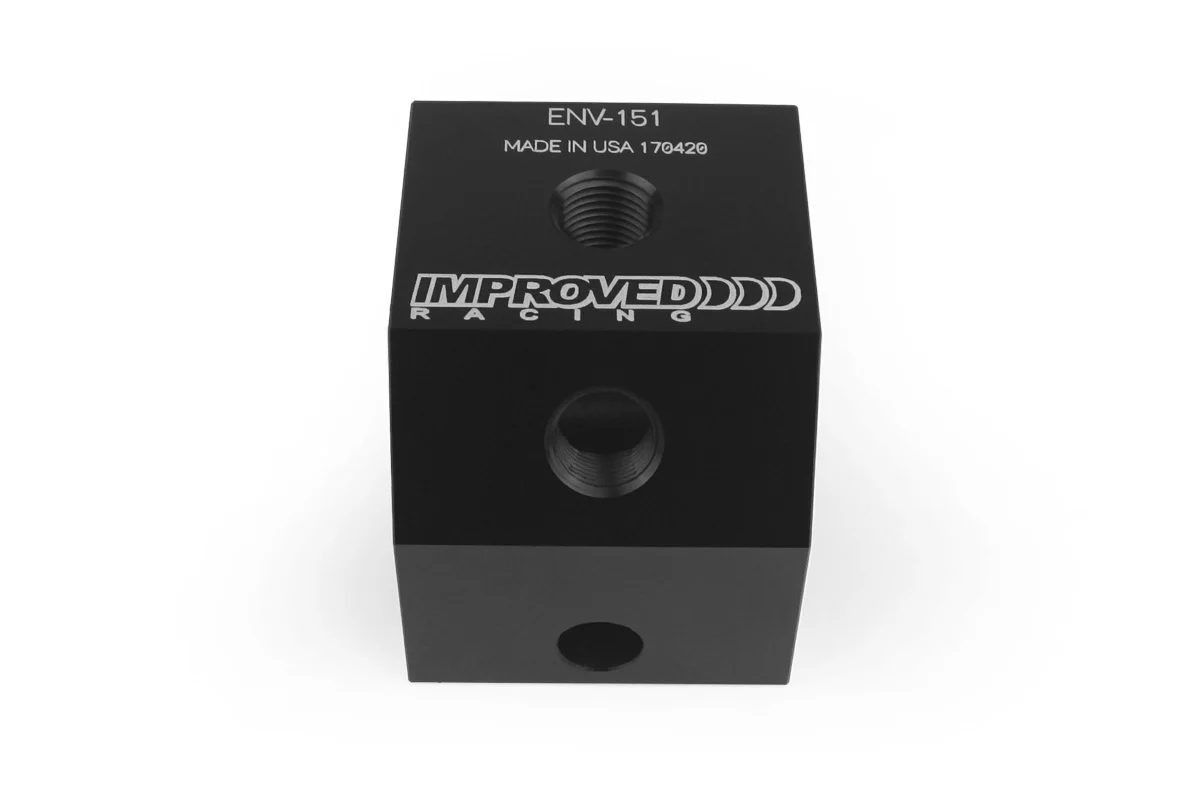

Improved Racing's compact dual inline sensor adapter block makes it simple to add two 1/8" NPT sensors to your oil cooler or transmission cooler line. The compact design takes up minimal space.

The flow-through design of the manifold makes it ideal for monitoring both oil pressure and oil temperature. It can also be used as an oil feed for a turbocharger or supercharger.

The manifold features -10AN O-ring boss threads and a large diameter passage that allows for high volume flow and minimal pressure drop. Fittings are available to accommodate -6AN, -8AN, -10AN and -12AN lines, or 3/8" and 1/2" hose.

These universal sensor adapter blocks can also be used in laboratory and industrial applications.

Features and Benefits

• Compact sensor adapter accommodates two 1/8" NPT oil sensors or oil supply lines
• High flow, low pressure drop design
• -10AN female O-ring boss input and output ports
• Mounting hole for a screw up to 8 mm (5/16") in diameter
• 6061-T6 billet aluminum construction with black MIL-A-8625 Type II anodized finish
• Lifetime Warranty
• Made in the USA

Available with 3/8" or 1/2" hose barb fittings or AN fittings in -6AN, -8AN, -10AN, or -12AN


Includes

• 1x Universal sensor manifold
• 2x Black anodized 3/8" or 1/2" hose barb or -6AN, -8AN, -10AN, or -12AN adapter fittings with Viton O-rings (OPTIONAL)
• 1x 1/8" NPT plug with thread sealant

Applications

• Universal fitment on oil cooler lines, transmission lines, power steering lines, etc. Appropriate for automotive, marine, laboratory and industrial use.
